2015 Volkswagen Jetta BaseFACTORY OEM SERVICE PROCEDURE

Instrument Cluster Multi-Pin Connector Pin Assignment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

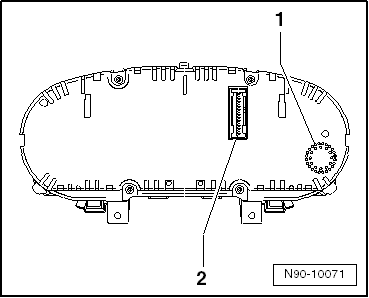

Buzzer
32-pin connector

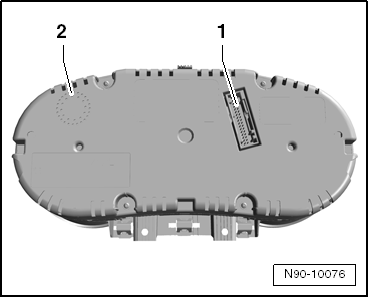

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

32-pin connector
Buzzer

Do not disassemble Instrument Cluster -KX2-. If necessary, replace the entire Instrument Cluster -KX2-.

Connector assignment for the connector on the Instrument Cluster -KX2-. Refer to the appropriate WIRING DIAGRAM.
