Vehicle Positioning System Control Module, Removing And Installing: Removing
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

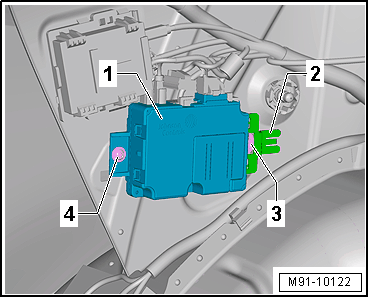

-- Remove the bolt -3-.
-- Remove the screw -4-.
-- Remove the Vehicle Positioning System Control Module -J895- -1- from the bracket -2-.
-- Disconnect the connector on the Vehicle Positioning System Control Module - J895- -1-.
