2015 Volkswagen Golf R Standard TransFACTORY OEM SERVICE PROCEDURE

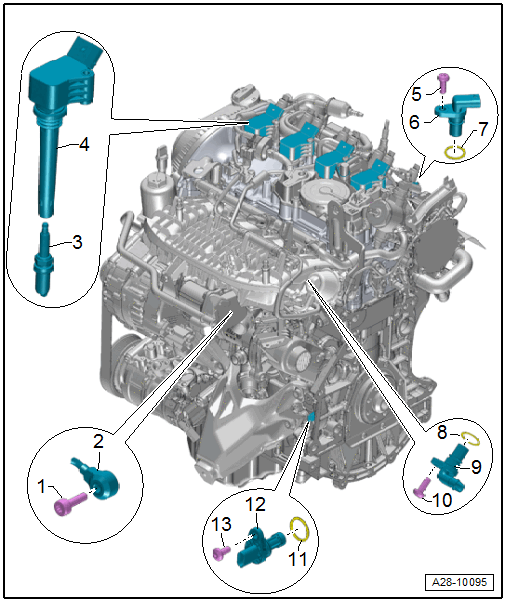

Overview - Ignition System
- Bolt
- 8 Nm +90°
- Replace after removing
- The tightening specification affects the knock sensor functions.
- Knock Sensor 1 -G61-
- Removing and installing. Refer to Knock Sensor --, REMOVING AND INSTALLING .
- Spark Plug
- 30 Nm
- Remove and install using Spark Plug Removal Tool:3122B
- Ignition Coil with Power Output Stage
- 10 Nm
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Removing and installing. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Camshaft Position Sensor 3 -G300-
- Removing and installing. Refer to Camshaft Position Sensor 3 -G300-, REMOVING AND INSTALLING .
- O-ring
- Replace if damaged
- O-ring
- Replace if damaged
- Camshaft Position Sensor -G40-
- Removing and installing. Refer to Camshaft Position Sensor -G40-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-ring
- Replace if damaged
- Engine Speed Sensor -G28-
- Check the O-ring for damage
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
