2012 Volkswagen Golf TDI, 2D Hatchback, Automatic DCT TransFACTORY OEM SERVICE PROCEDURE

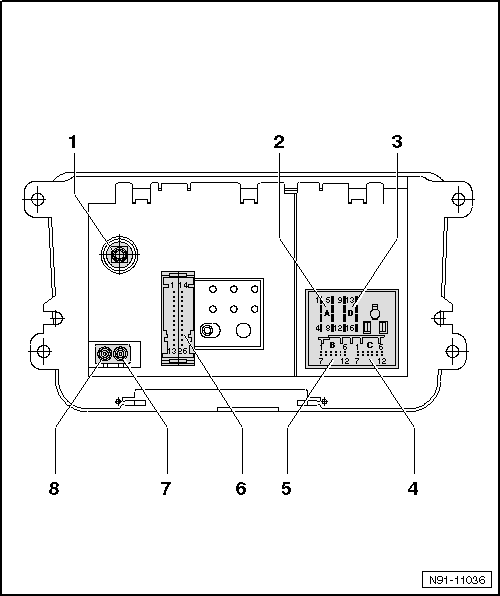

Connector Overview
- Antenna Connection
- Connector color: black
- SAT connection for the roof antenna, refer to ANTENNA SYSTEM .
- 8-pin Connector 1, Speaker Outputs
- Terminal assignment, refer to 8-PIN CONNECTOR 1, SPEAKER OUTPUTS .
- 8-pin Connector 2, CAN Bus, Telephone
- Terminal assignment, refer to 8-PIN CONNECTOR 2, CAN BUS, TELEPHONE .
- 12-pin Connector 3, Telephone
- Terminal assignment, refer to 12-PIN CONNECTOR 3, TELEPHONE .
- 12-pin connector 4, CD changer -R41-
- Terminal assignment refer to 12-PIN CONNECTOR 4, CD CHANGER -R41- .
- 26-pin Connector 5, Video and LF Input
- Terminal assignment refer to 26-PIN CONNECTOR 5, VIDEO AND LF INPUT .
- Antenna Connection
- Connector color: white
- FM2
- Antenna systems, refer to ANTENNA SYSTEM .
- Antenna Connection
- Connector color: white
- AM/FM
- Antenna systems, refer to ANTENNA SYSTEM .
