Control Module And Hydraulic Unit, With Abs Mark 70 (Abs/ASR)
Special tools and workshop equipment required
- Torque wrench V.A.G 1331
- Torque wrench V.A.G 1410
- Brake pedal actuator V.A.G 1869/2
- Vehicle diagnostic, test and information system VAS 5051
After separating the control module from the hydraulic unit, the transport protection for valve body must be placed on the hydraulic unit.
Warranties will not be granted for hydraulic units without transport protection.

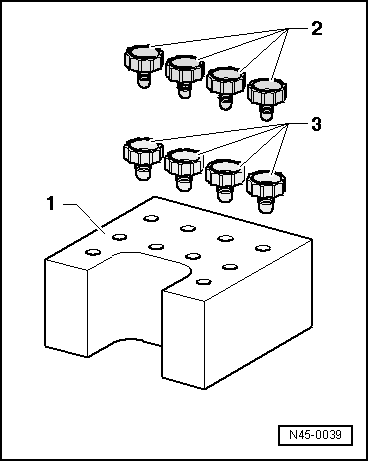

1 - Transport protection for valve domes (foam)
2 - Sealing plug M 10
3 - Sealing plug M 12
Control Module and Hydraulic Unit, Removing
Component location: The control module is bolted to the hydraulic unit and is located at right in the engine compartment.
