2012 Volkswagen Golf TDI, 2D Hatchback, Automatic DCT TransFACTORY OEM SERVICE PROCEDURE

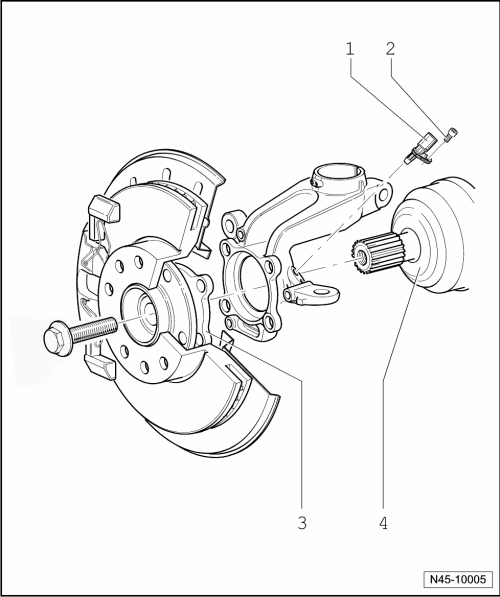

Front Wheel Speed Sensor Assembly Overview
- ABS Speed Sensor
- Before inserting sensor, clean inner surface of mounting hole and coat with hot bolt paste G 052 112 A3.
- Removing and Installing, refer to FRONT WHEEL SPEED SENSOR .
- Bolt
- 8 Nm
- Wheel Bearing Unit
- The ABS sensor ring is installed in the wheel bearing.
- Drive Axle
