2012 Volkswagen CC (357) L4-2.0L Turbo (CCTA)FACTORY OEM SERVICE PROCEDURE
Diagnostic Mode 09 - Read Vehicle Information
Diagnostic Mode 09 - Read Vehicle Information
Diagnostic Mode 09 makes it possible to access vehicle-specific information from the ECM and the TCM (where applicable).
• Depending on scan tool and protocol used, Diagnostic Mode 09 and the information provided may be referred to by a different name.
Test requirement
• No DTCs stored in the DTC memory.
Procedure
- Connect the scan tool.
- Switch the ignition on.
- Select Mode 09: Vehicle information.
- Select the desired Test-ID.
- The information requested will be displayed on the scan tool screen.

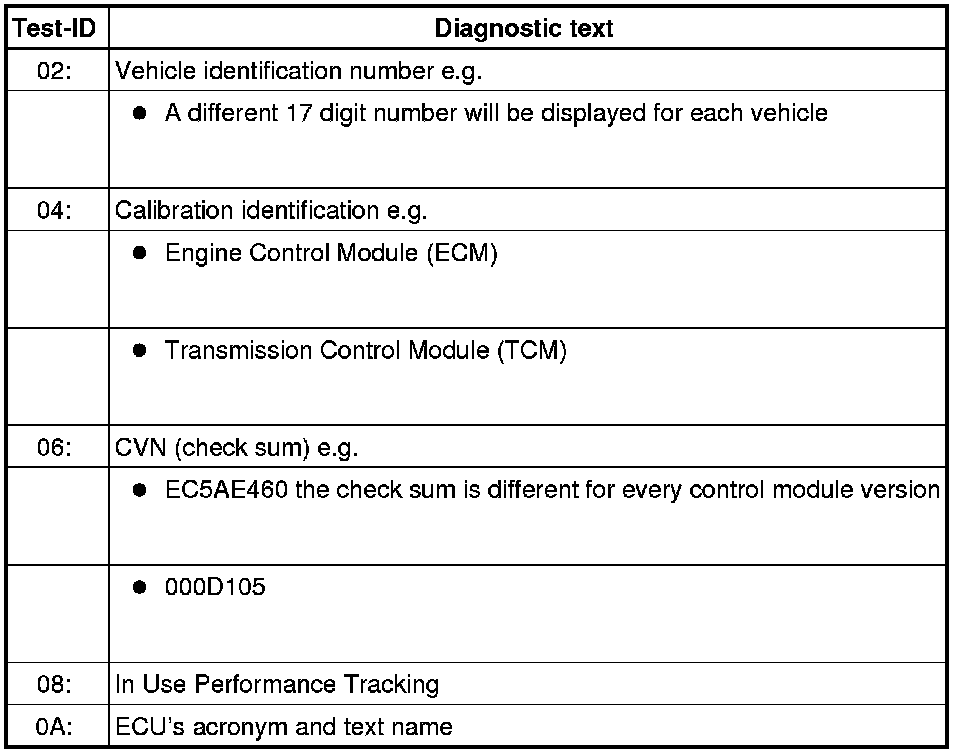

The following table is a numerical list of all Test-IDs that may be selected.
- Switch the ignition OFF.
