2012 Volkswagen Beetle (5C1) L5-2.5L (CBTA)FACTORY OEM SERVICE PROCEDURE

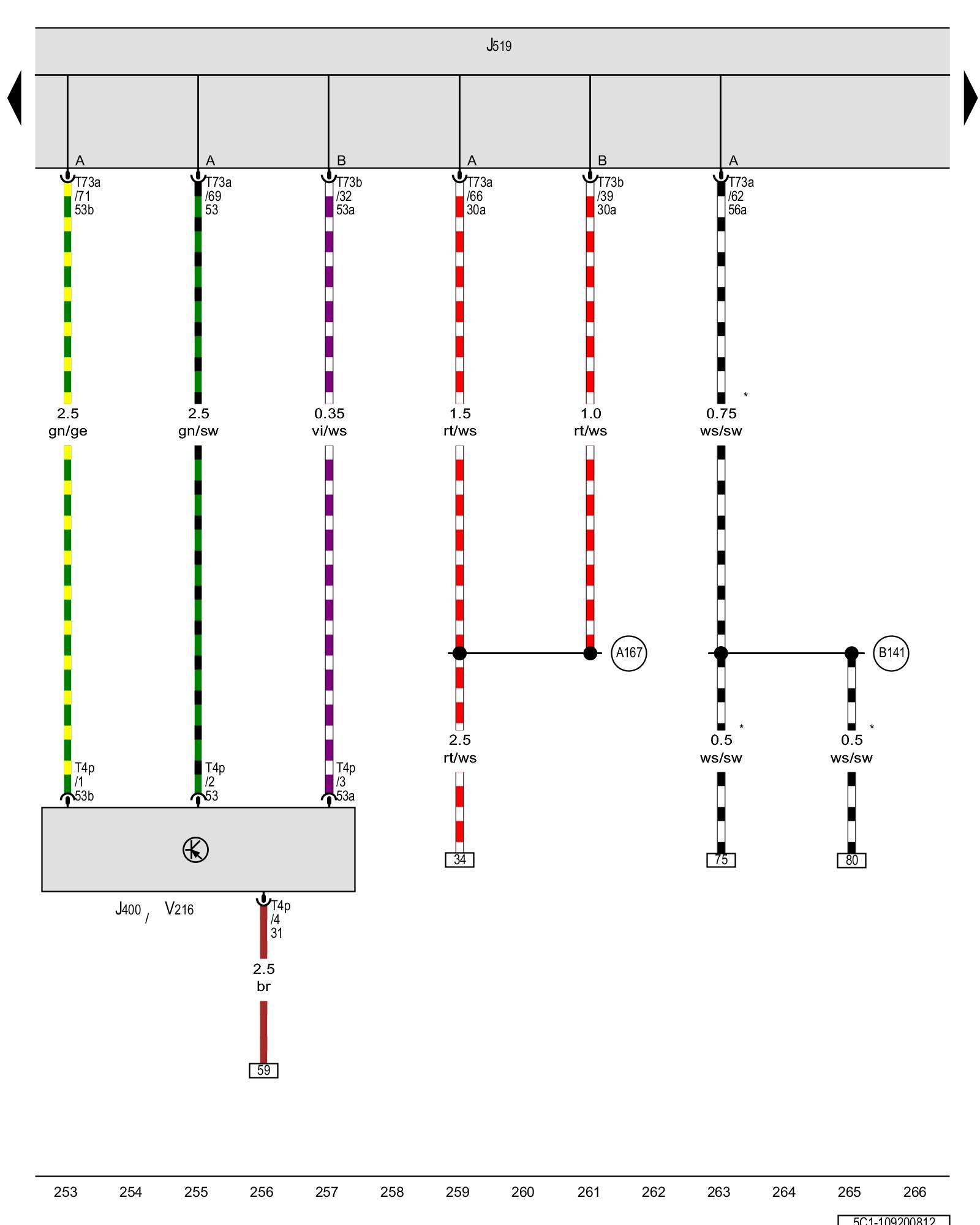

Diagram 109/20 (Tracks 253-266)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Wiper motor control module, Vehicle electrical system control module, Driver windshield wiper motor
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
J400 - Wiper motor control module
J519 - Vehicle electrical system control module Locations Control modules in interior
T4p - 4-pin connector
T73a - 73-pin connector
T73b - 73-pin connector
V216 - Driver windshield wiper motor
(A167) - Positive connection 3 (30a) (in instrument panel wiring harness)
(B141) - Positive connection 1 (56a) (in interior wiring harness)
* - Only for vehicles with automatic headlamp range control
Previous Diagram 109/19 (Tracks 239-252)
Next Diagram 109/21 (Tracks 267-280)
