2012 Volkswagen Beetle (5C1) L5-2.5L (CBTA)FACTORY OEM SERVICE PROCEDURE

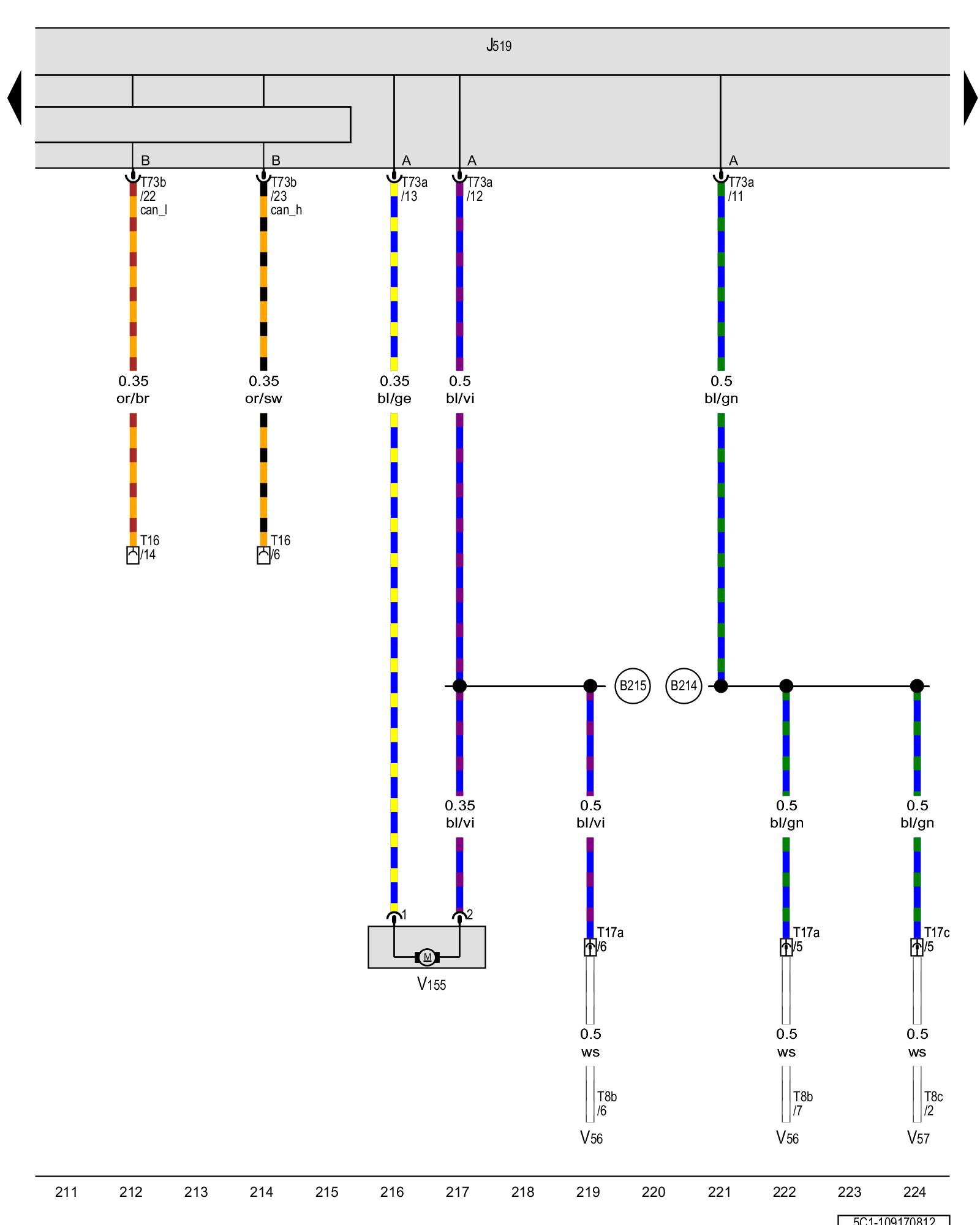

Diagram 109/17 (Tracks 211-224)
IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions
Vehicle electrical system control module, Fuel filler door unlock motor
ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink
J519 - Vehicle electrical system control module Locations Control modules in interior
T8b - 8-pin connector
T8c - 8-pin connector
T16 - 16-pin connector
T17a - 17-pin connector
T17c - 17-pin connector
T73a - 73-pin connector
T73b - 73-pin connector
V56 - Driver door central locking system motor Locations
V57 - Front passenger door central locking system motor Locations
V155 - Fuel filler door unlock motor Locations
(B214) - Central locking connection 1 (in interior wiring harness)
(B215) - Central locking connection 2 (in interior wiring harness)
Previous Diagram 109/16 (Tracks 197-210)
Next Diagram 109/18 (Tracks 225-238)
