Multimedia Control Module
Removing
Special tools and workshop equipment required
- Radio Release ToolT10057
The Multi Media control module is installed inside the storage compartment in the center armrest.

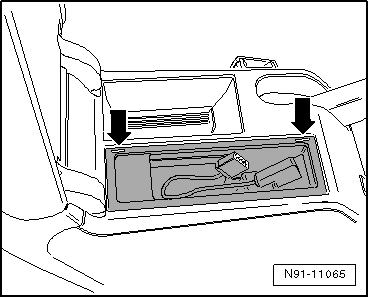

-- Insert the T10057 into the openings -arrows- until it engages.

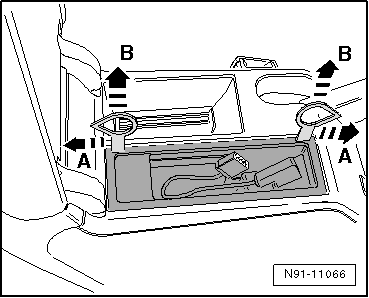

-- Press the tools in direction -A- and pull the control module in direction -B-.
-- Release the connector -arrow- and pull the connector -A- off the control module.
Installing
Install in reverse order of removal.
