Camshaft Position Sensor, Checking
Special tools and workshop equipment required
- Multimeter
- wiring diagrams
Use only gold-plated terminals when servicing terminals in harness connector of Camshaft Position (CMP) Sensor -G40-.
Test requirements
- Fuses for Engine Control Module (ECM) -J623- OK refer to appropriate SYSTEM WIRING DIAGRAMS.
- Battery voltage at least 12.5 volts.
- All electrical consumers such as, lights and rear window defroster, switched off.
- Vehicles with automatic transmission, shift selector lever into position "P" or "N".
- A/C switched off.
- Ground (GND) connections between engine/transmission/chassis OK.
- Ignition switched off.
Test procedure
-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .
Start diagnosis

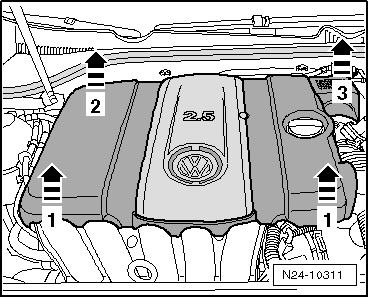

-- Pull engine cover out of first mount at front arrow 1, then at right rear arrow 2 and finally at left rear arrow 3.
