Fuel Injector, Checking

Test requirements

• Multimeter
• 12 V Diode test lamp.
• Wiring diagram.

Test requirements

• The Fuel Injectors -N30, N31, N32, N33, N83, N84- fuses OK.

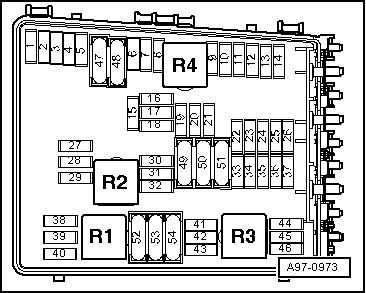

  Fig 1: Fuses On E-Box In Engine Compartment, Left Side

  Courtesy of VOLKSWAGEN UNITED STATES, INC.
• The Engine Speed (RPM) Sensor -G28- OK, checking.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground connections between engine/transmission/chassis OK.
• Ignition switched off.

Test procedure

-- Observe safety precautions. Refer to SAFETY PRECAUTIONS

-- Observe Clean Working Conditions. Refer to CLEAN WORKING CONDITIONS

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK .

Start diagnosis

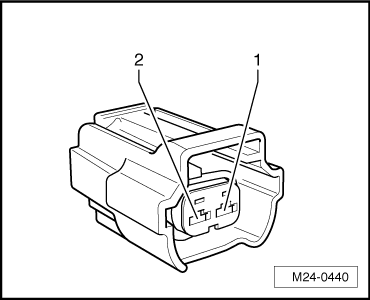

-- Disconnect the fuel injector electrical harness connectors from Fuel Injectors -N30, N31, N32, N33, N83, N84- .

Checking internal resistance

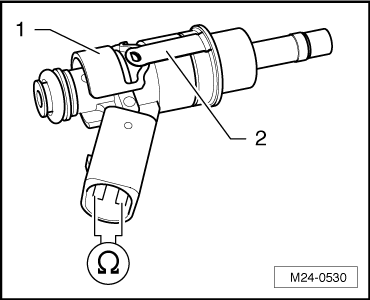

-- Using a multimeter, check the fuel injector electrical terminals 1 to 2 for resistance.

Specified value: 12.0 to 20.0 Ω (at approx. 20°C)

If the specified value was not obtained:

-- Replace the malfunctioning fuel injector.

If the specified value was obtained:

Checking activation and wiring

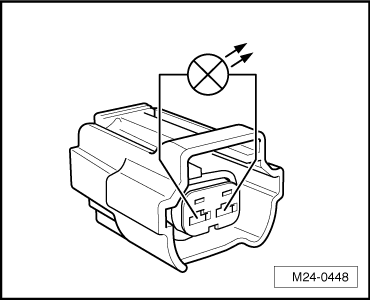

-- Connect a 12 V Diode test lamp to the electrical harness connector terminals 1 and 2 of the fuel injector to be tested.

-- Operate the starter and test the activation of the fuel injector.

LED should flicker.

-- Switch the ignition off.

If LED does not flicker:

If the manufacturers test box is being used. Perform the following step.

-- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

-- Remove the Motronic Engine Control Module (ECM) -J623-.

-- Using a multimeter, check the fuel injector electrical harness connector terminals to the Motronic Engine Control Module (ECM) -J220- electrical harness connector T60 terminals for an open circuit.

Component	Fuel Injector electrical harness connector terminals	Motronic Engine Control Module (ECM) -J623- electrical connector T60 terminals or test box sockets
Cylinder 1 Fuel Injector -N30-	1	53
	2	2
Cylinder 2 Fuel Injector -N31-	1	47
	2	1
Cylinder 3 Fuel Injector -N32-	1	31
	2	18
Cylinder 4 Fuel Injector -N33-	1	46
	2	3
Cylinder 5 Fuel Injector -N83-	1	32
	2	17
Cylinder 6 Fuel Injector -N84-	1	48
	2	16

Specified value: 1.5 Ω Max.

If the specification is not obtained:

-- Check the wiring for an open, high resistance or short circuit to voltage or ground.

-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

-- Erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .

-- Perform a road test to verify repair.

If the DTC does not return:

Generate readiness code. Refer to READINESS CODE .

If the DTC does return, no malfunction is detected in the wiring and the voltage supply is OK:

-- Replace the Motronic Engine Control Module (ECM) -J623-.

-- Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the mentioned sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
