Fastener Tightening Specifications
| Component | Fastener Size | Nm |
|---|---|---|
| Bolts and Nuts | ||
| M6 | 10 | |
| M7 | 15 | |
| M8 | 25 | |
| M10 | 40 | |
| M12 | 60 | |

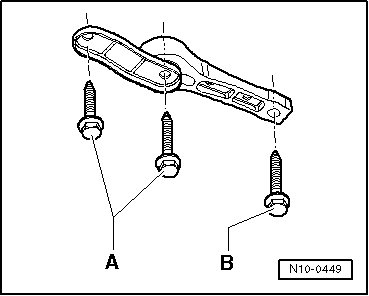

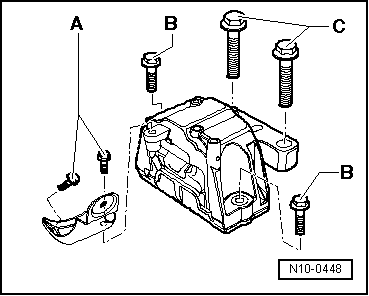

A - 20 Nm + 90° (1/4) additional turn 1
B - 40 Nm + 90° (1/4) additional turn 1
C - 60 Nm + 90° (1/4) additional turn 1

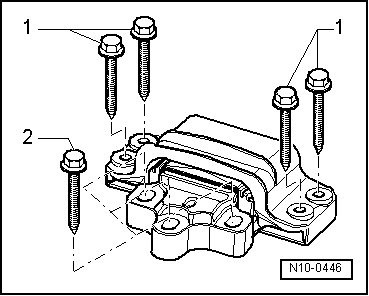

1 - 40 Nm + 90° (1/4) additional turn 1
2 - 60 Nm + 90° (1/4) additional turn 1
A - M10 bolt, strength category 8.8 = 40 Nm + 90° (1/4) additional turn 1
A - M10 bolt, strength category 10.9 = 50 Nm + 90° (1/4) additional turn 1
A - M12 bolt = 60 Nm + 90° (1/4) additional turn 1
B - 100 Nm + 90° (1/4) additional turn 1
- 1 Always replace
