2007 Volkswagen Passat 3.6, 4D SedanFACTORY OEM SERVICE PROCEDURE

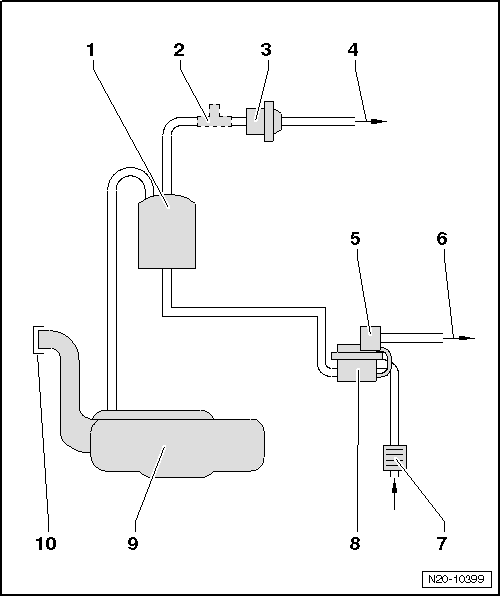

EVAP System Function Overview
- Evaporative Emission (EVAP) Canister
- Adapter Hose KLI 9210/55-1 Installed Location
- With the fuel system leak test.
- EVAP Canister Purge Regulator Valve 1 -N80-
- Vent Line
- To the intake manifold.
- Solenoid Valve
- For the leak detection pump.
- Vacuum Line
- To the intake manifold.
- Air Filter Housing
- For the leak detection pump.
- Leak Detection Pump (LDP) -V144-
- Fuel Tank
- Cap
