2007 Volkswagen Passat 3.6, 4D SedanFACTORY OEM SERVICE PROCEDURE

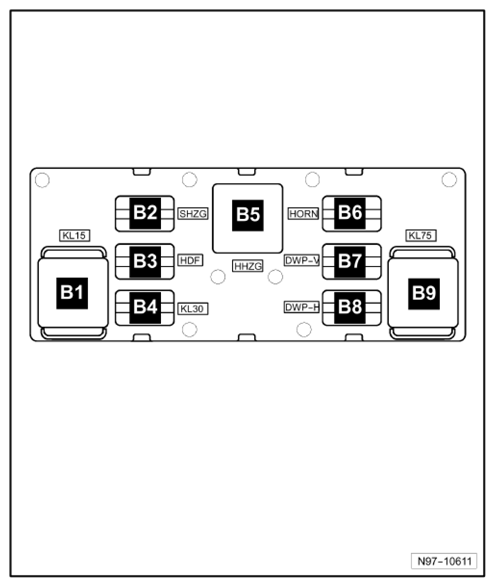

Relays On Electrical System Control Module
- B1 - Terminal 15 power supply relay -J329- (460)
- B2 - Not Used
- B3 - Not Used
- B4 - Power Supply Relay 2 (terminal 30) -J689- (449)
- B5 - Rear window Defogger relay -J9- (53)
- B6 - Dual tone horn relay -J4- (449)
- B7 - Dual washer pump relay 2 -J730- (404)
- B8 - Dual washer pump relay 1 -J729- (404)
- B9 - Load reduction relay -J59- (460)
