Front Abs Wheel Speed Sensor
Removing
-- Raise the vehicle.

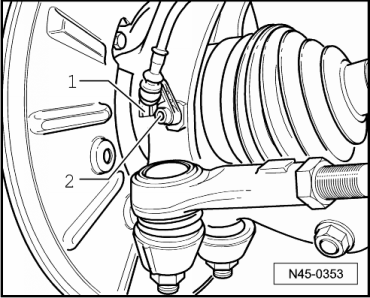

-- Separate speed sensor and speed sensor wiring connector -1-.
-- Remove bolt -2- from wheel bearing housing.
-- Remove ABS speed sensor from wheel bearing housing.
Installing
-- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with hot bolt paste G 052 112 A3.
-- Insert the speed sensor into the hole in the wheel bearing housing and tighten the bolt to 8 Nm.
-- Connect speed sensor to speed sensor wiring.
