Multimedia System Control Module -J650
Special tools and workshop equipment required
- Radio Removal Tool T10057
Removal
The multi media system control module is installed in the glove compartment.

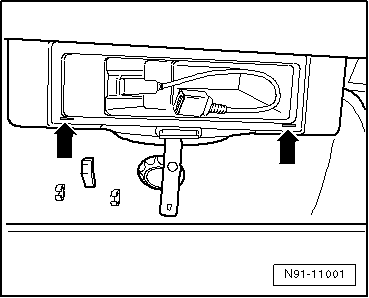

-- Insert the T10057 into the provided openings -arrows- until it locks into place.

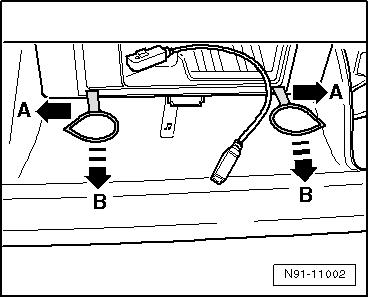

-- Press the tools in direction -A- and pull the control module in direction -B-.

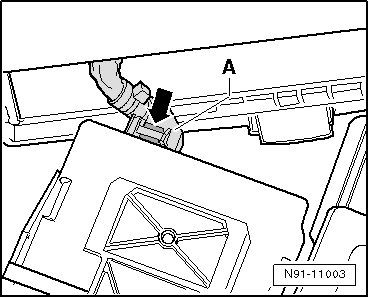

-- Release the connector -arrow- and pull the connector -A- off the control module.
Installation
Install in reverse order of removal.
