MULTIFUNCTION Steering Wheel Control Module
Removal
-- Remove driver's side airbag unit.
-- Remove the driver side airbag unit. Refer to Removal and Installation .
-- Disconnect both harness connectors at control module.

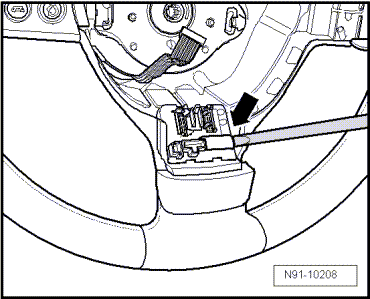

-- Using a suitable screwdriver, carefully pry out control module -arrow-.
Installation
Install in reverse order of removal.
-- Code control module for steering column electronics, refer to MULTIFUNCTION STEERING WHEEL, ADAPTING COMPONENTS .
