2004 Volkswagen R32FACTORY OEM SERVICE PROCEDURE
Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

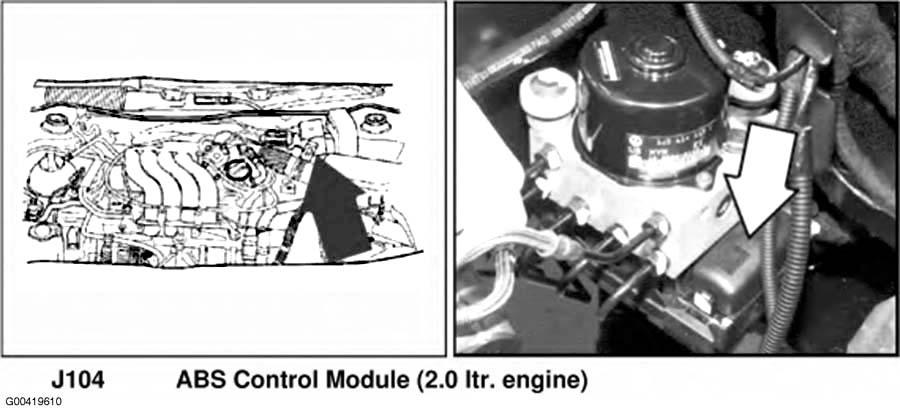

| ABS Control Module | At left side of engine compartment. See Figure. |

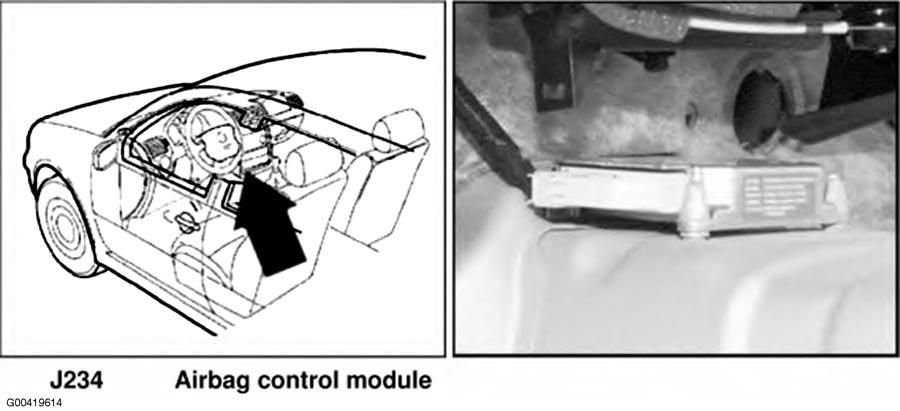

| Air Bag Control Module | Beneath center of dash, on central tunnel. See Figure. |

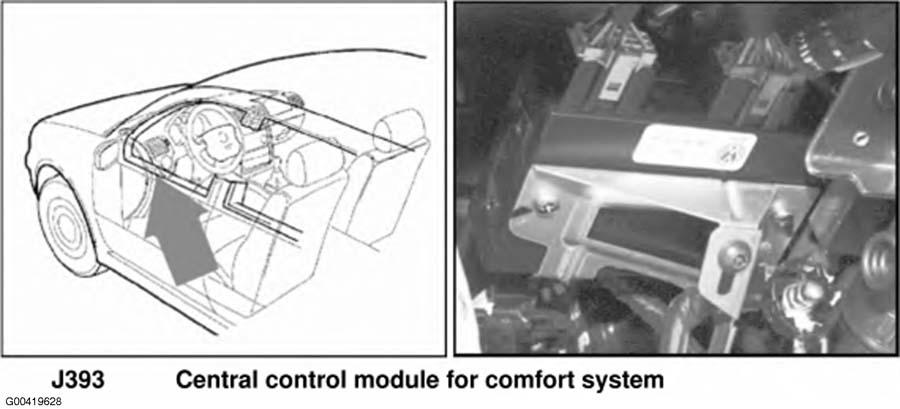

| Comfort System Central Control Module (Early Production) | Behind left side of dash. See Figure. |

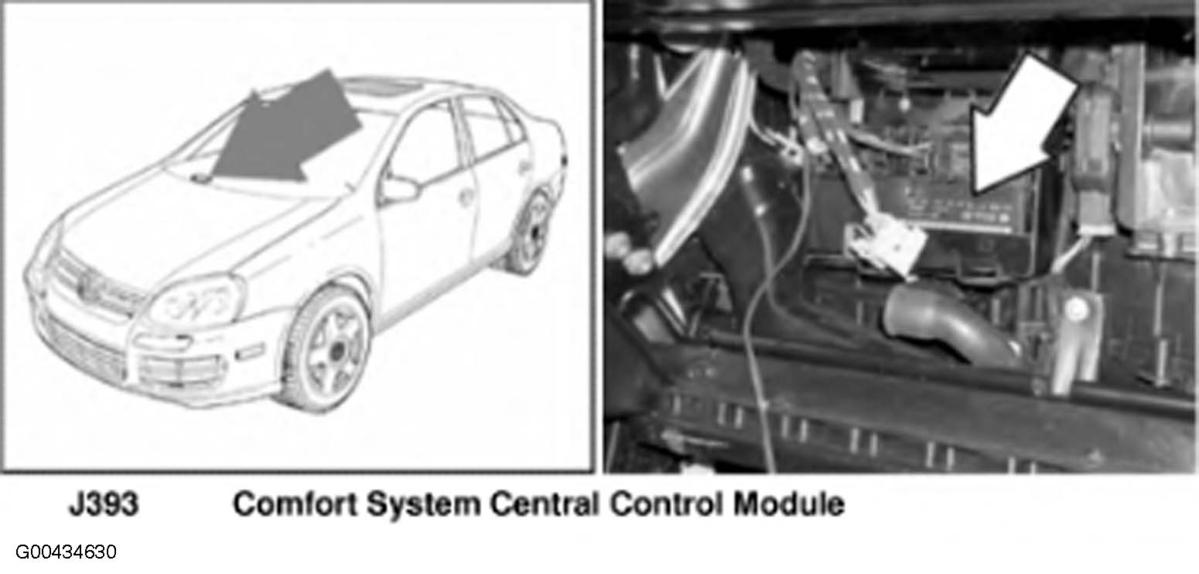

| Comfort System Central Control Module (Late Production) | Behind right side of dash. See Figure. |

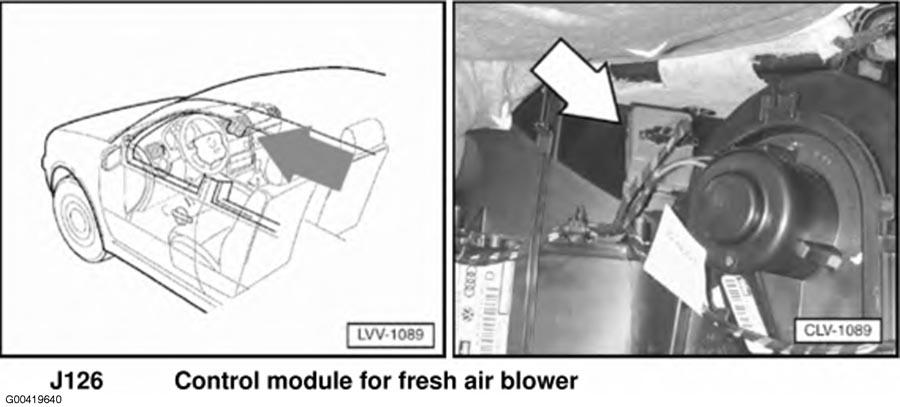

| Control Module For Fresh Air Blower | Near blower motor. See Figure. |

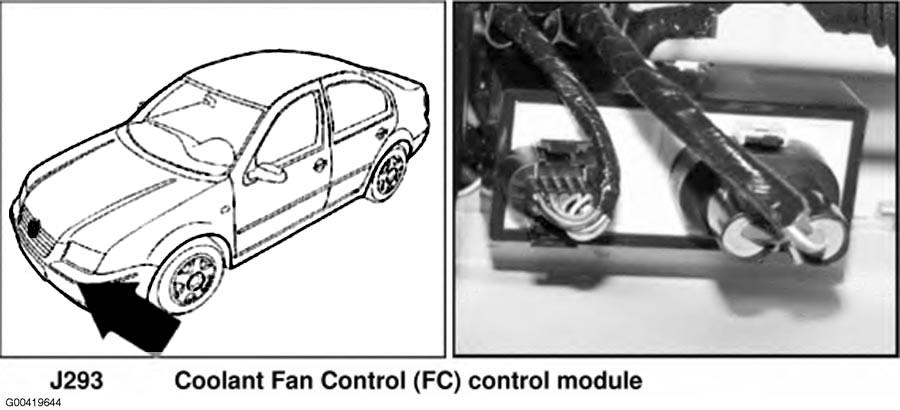

| Coolant Fan Control Module | On left front of engine compartment. See Figure. |

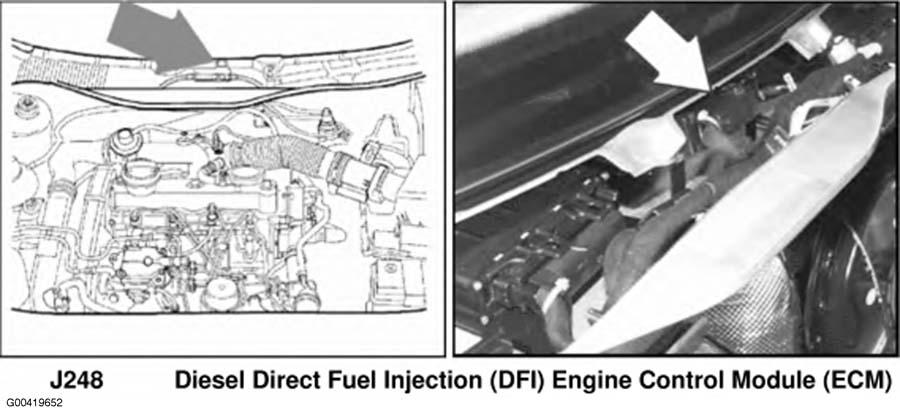

| Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM) | At base of windshield, in center of plenum. See Figure. |

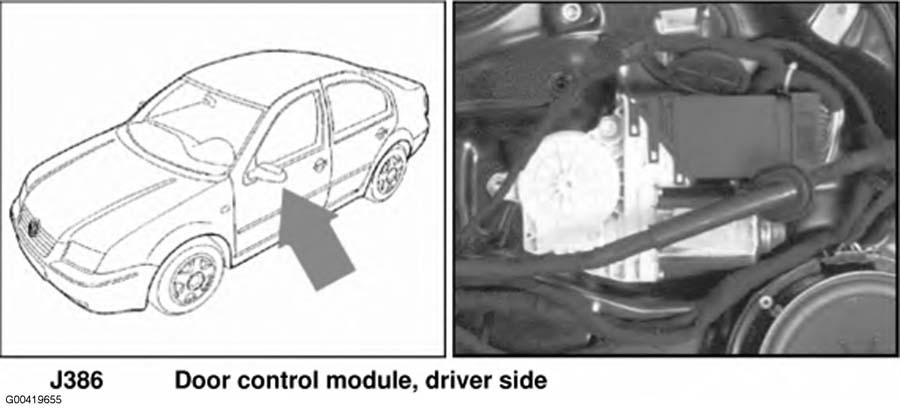

| Door Control Module (Driver's) | In driver's door. See Figure. |

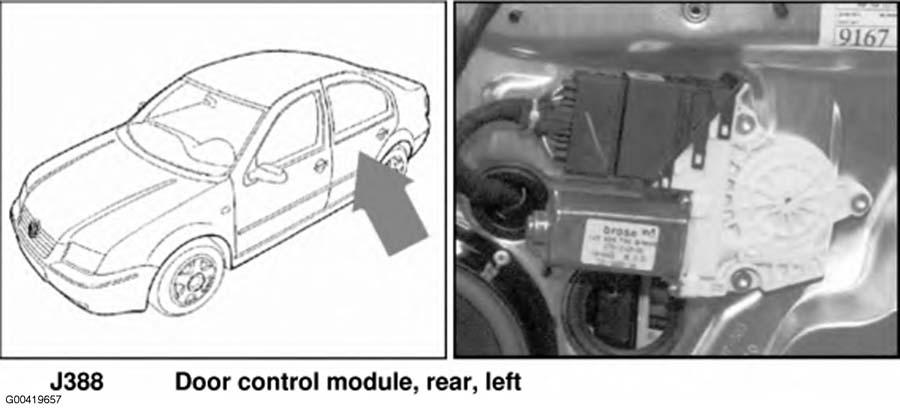

| Door Control Module (Left Rear) | In left rear door. See Figure. |

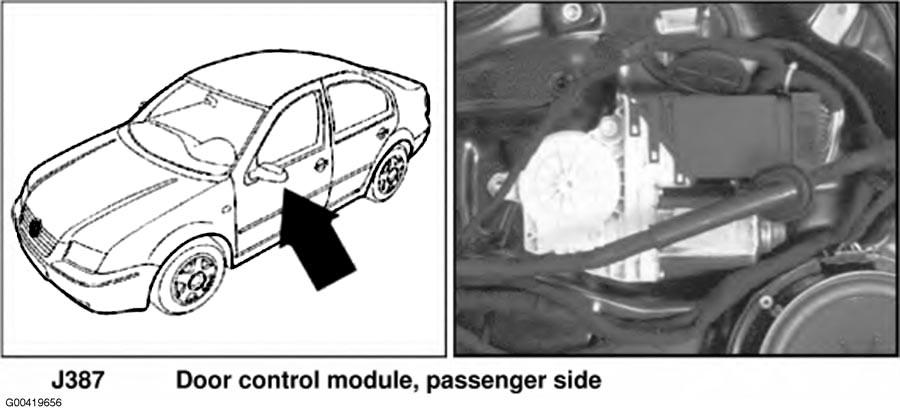

| Door Control Module (Passenger's) | In passenger's door. See Figure. |

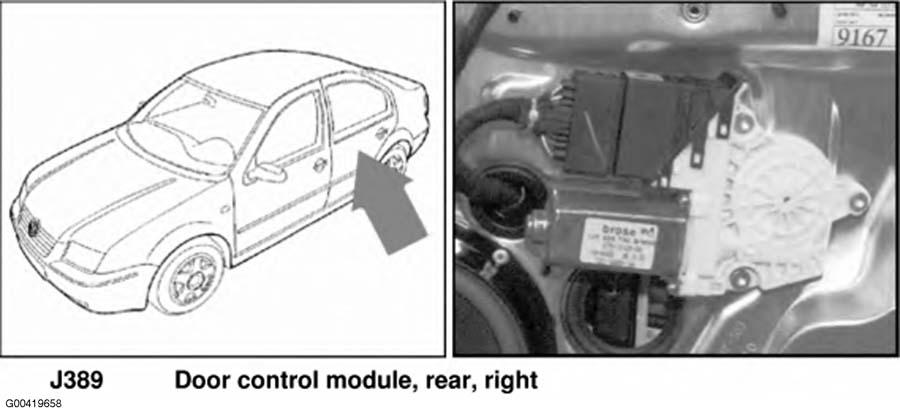

| Door Control Module (Right Rear) | In right rear door. See Figure. |

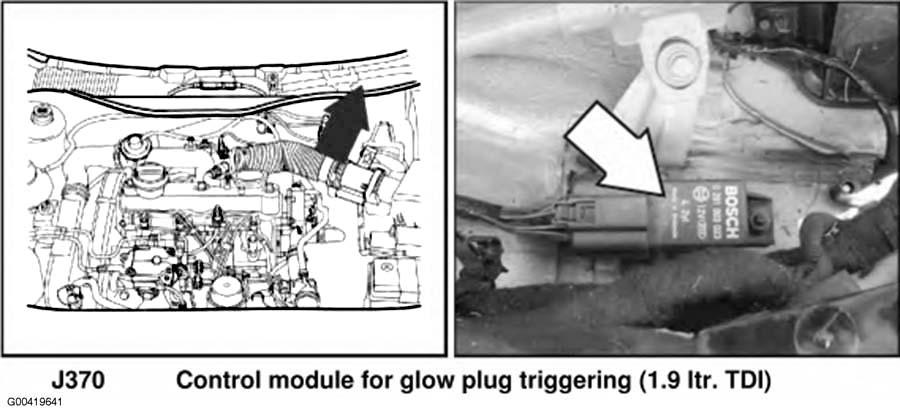

| Glow Plug Triggering Control Module | In plenum, left side. See Figure. |

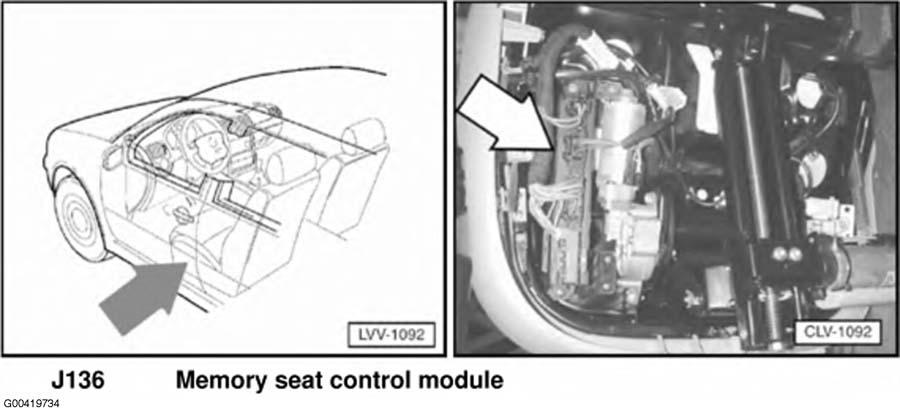

| Memory Seat Control Module | Under left side of driver's seat. See Figure. |

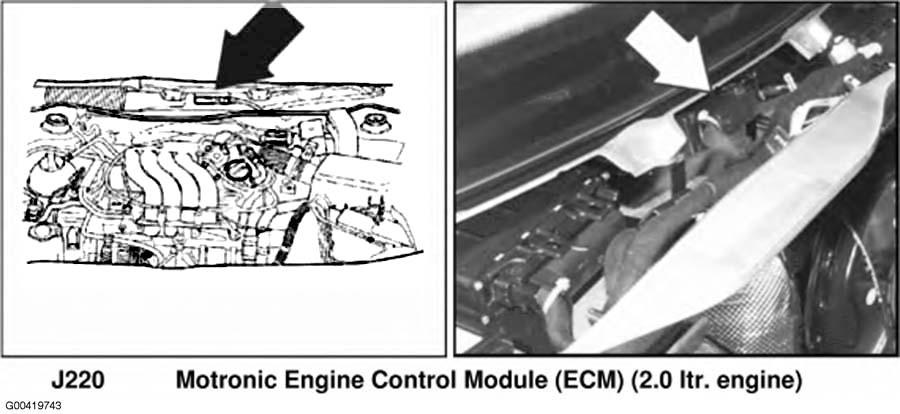

| Motronic Engine Control Module (ECM) (2.0L) | At base of windshield, in center of plenum. See Figure. |

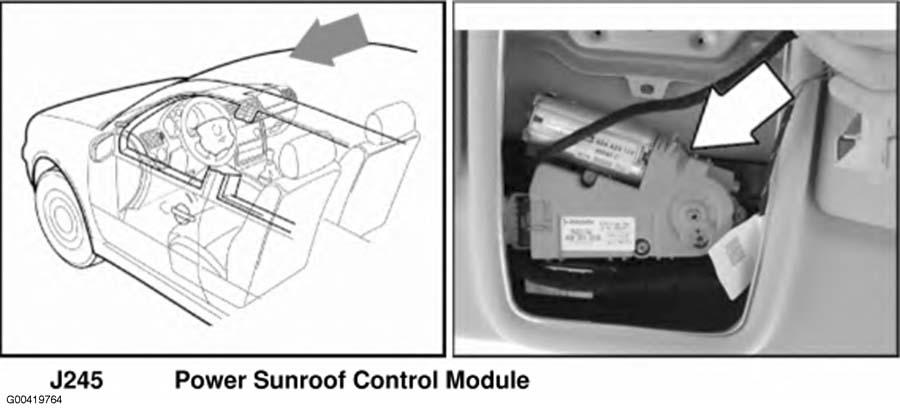

| Power Sunroof Control Module | Behind front interior light. See Figure. |

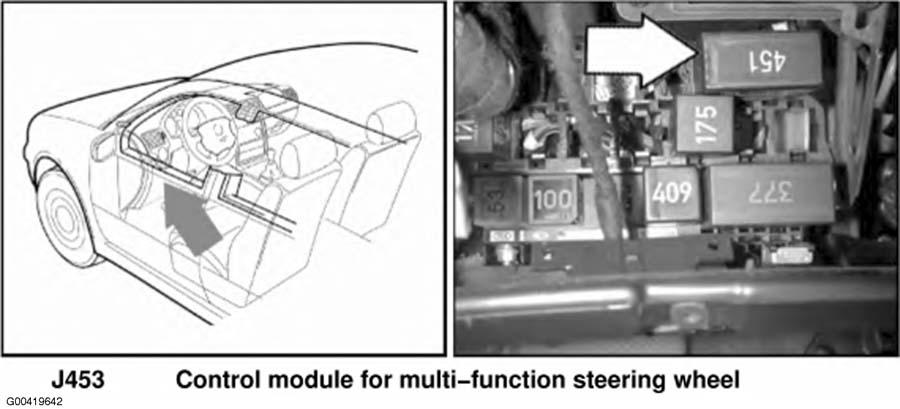

| Steering Wheel Multifunction Control Module | On thirteenfold auxiliary relay panel. See Figure. |

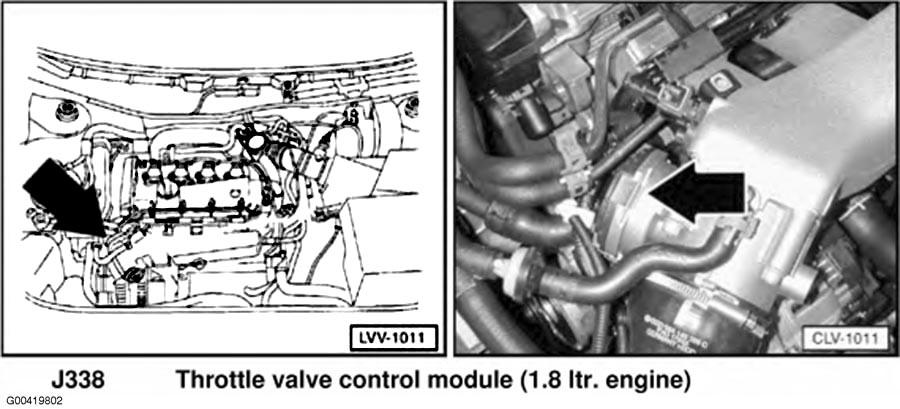

| Throttle Valve Control Module (1.8L) | On throttle body. See Figure. |

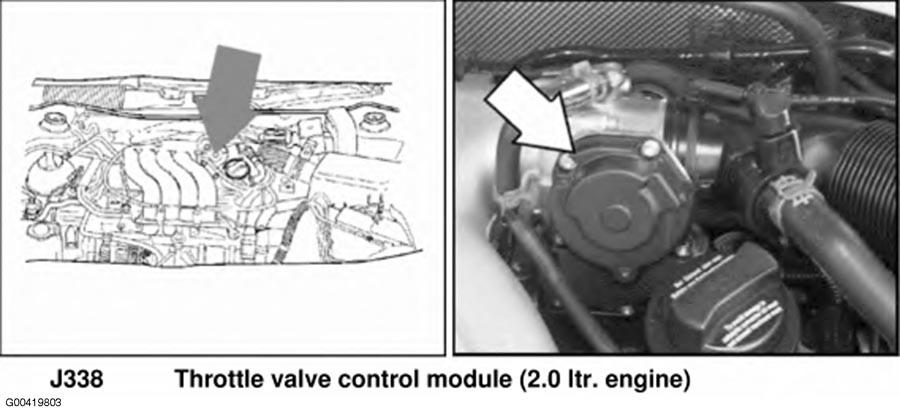

| Throttle Valve Control Module (2.0L) | On throttle body. See Figure. |

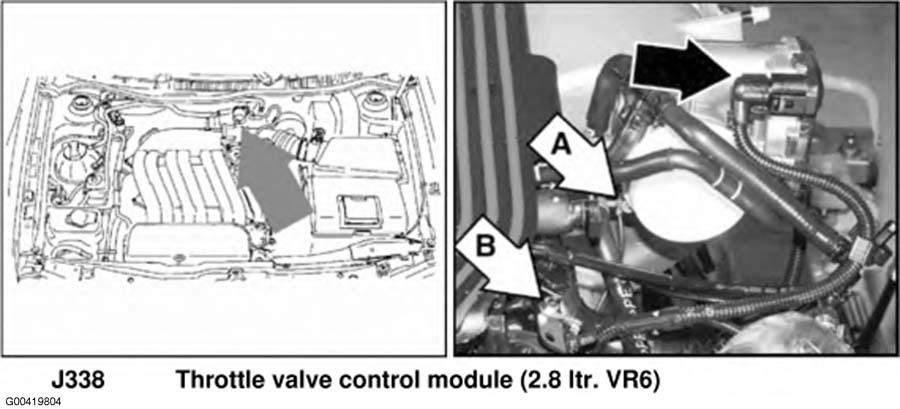

| Throttle Valve Control Module (2.8L) | On throttle body. See Figure. |

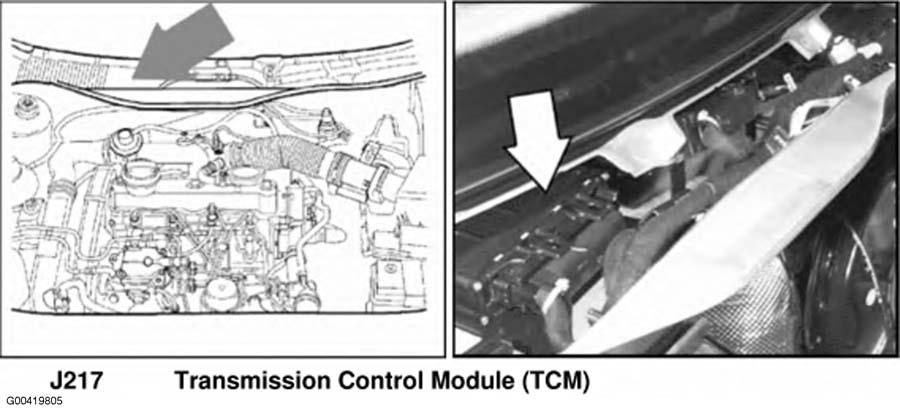

| Transmission Control Module | At base of windshield, in right side of plenum. See Figure. |
