Freeze Protection, Checking And Adding Coolant Additive
Special tools and workshop equipment required

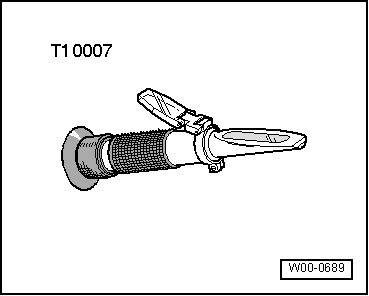

- Refractometer T10007
Read the bright/ark boundary to obtain an accurate reading for the following tests. Place a drop of water on the glass to improve the readability of the bright/dark boundary. The bright/dark boundary can be clearly recognized on the "WATERLINE".
-- Check the concentration of the coolant additive using Refractometer T10007 (operating instructions).

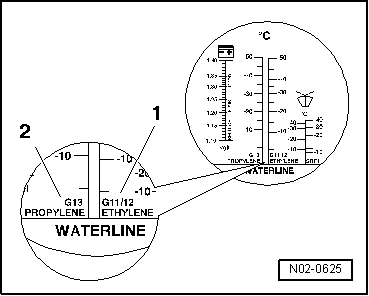

The scale -1- of the Refractometer is designed for coolant additives -G 12- and -G 11-.
