Fuel Injector Resistance Test

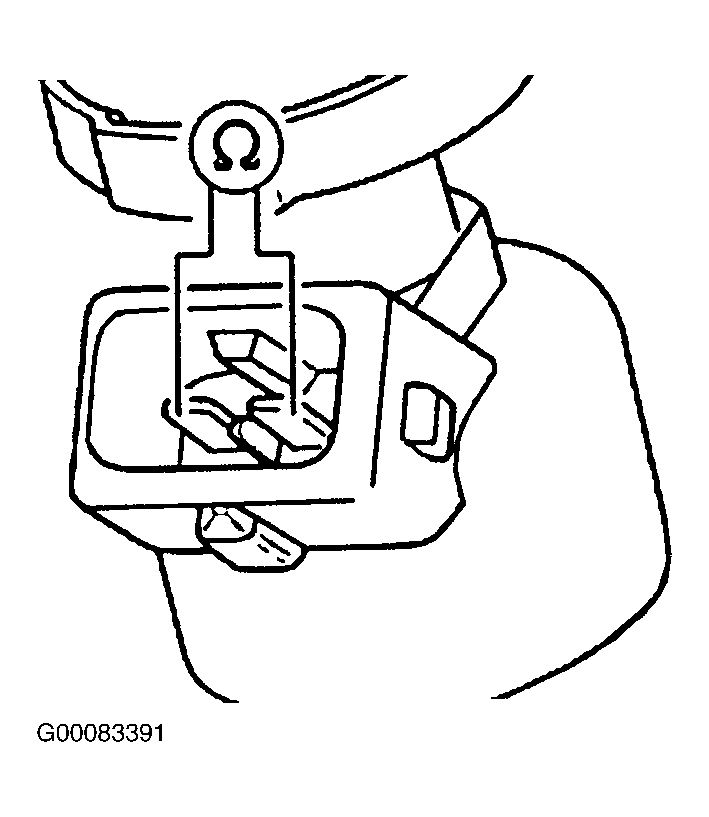

Turn ignition off. Disconnect fuel injector electrical connector. Using a DVOM, measure resistance between fuel injector terminals. See Fig 1 and FUEL INJECTOR RESISTANCE table. If resistance is not as specified, replace fuel injector.
| Model | (1) Resistance | |||
|---|---|---|---|---|
| EuroVan | ||||
| 2.8L VR6 (Engine Code AES) | 15-21.5 | |||
| 2.8L VR6 (Engine Code AXK) | 13-19 | |||
|
||||
