Installing (2.8L, 2V - Engine Code AES)
Place drive plate on crankshaft.
Insert 3 (minimum) old bolts and tighten to 22 ft. lbs. (30 N.m).

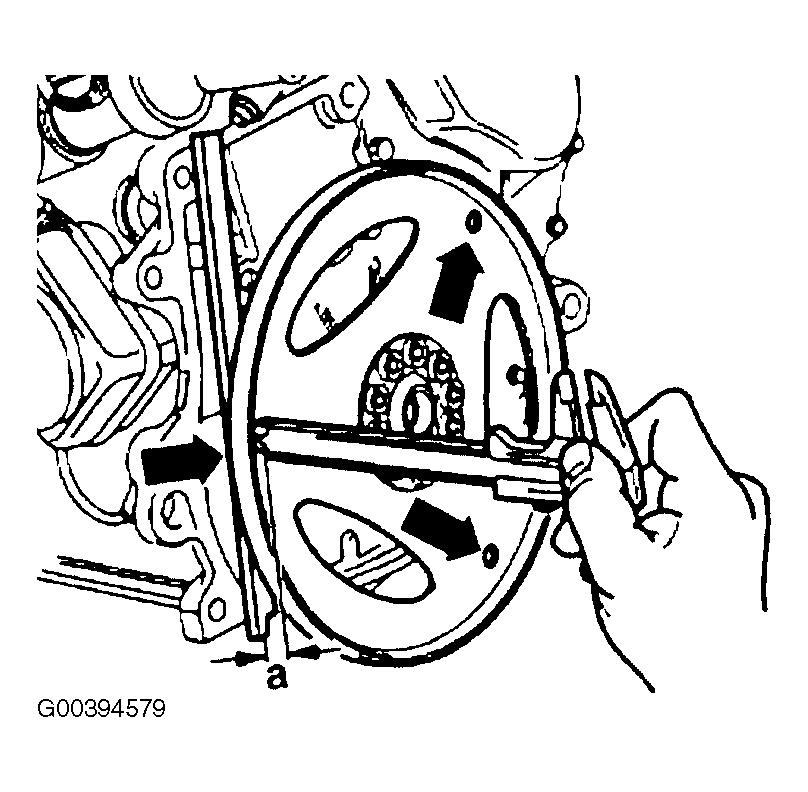

Check dimension -a- through three torque converter mounting holes using a straight edge and depth gauge. Calculate average. See Fig 1 .
Compare average with specification (measured distance plus thickness of straight edge).
Specification: 0.04 to 0.65 in. (15.7 to 16.5 mm)
If specification not obtained:
- Remove drive plate again and install appropriate shim.
If specification is obtained:
- Insert new bolts and tighten by hand.
- Tighten bolts to 44 ft. lbs (60 N.m) and then turn an additional (1/4 turn).
Additional 1/4 turn can be done using more than one step.
