Removing And Installing Automatic Transmission Control Module (TCM) -J217
Remove relay plate cover and unhook relay plate. See Fuse/Relay Panel, Removing And Installing .

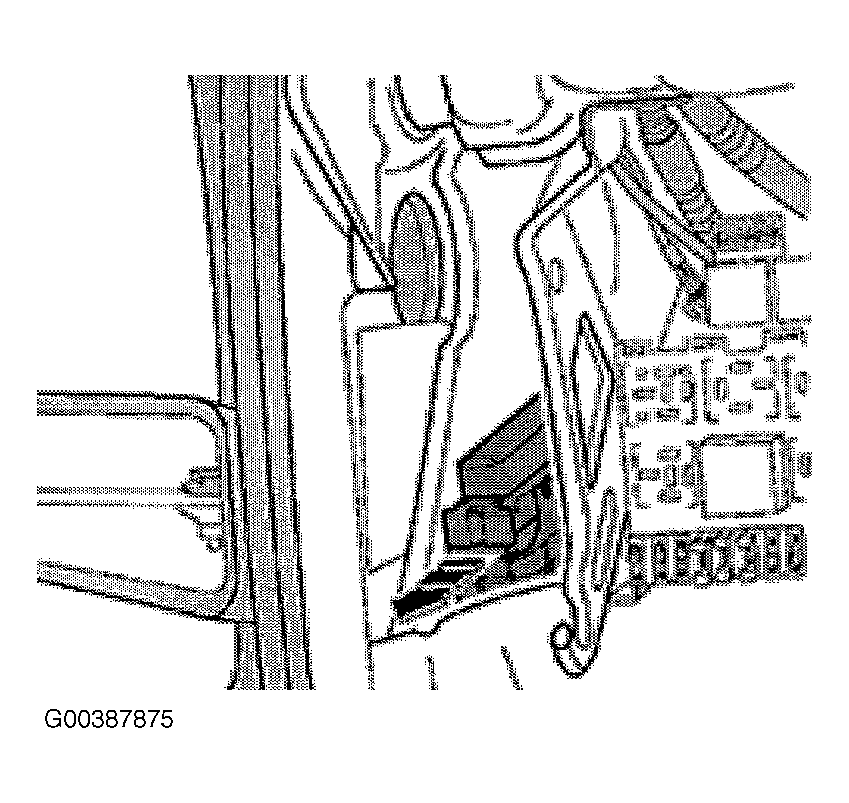

Switch ignition off, release multi-pin connector in direction of arrow and pull out of control module. See Fig 1 .
Remove control module.
Installation is performed in the reverse order.
