2002 Volkswagen EuroVan BaseFACTORY OEM SERVICE PROCEDURE
Engine Code Location
ENGINE CODE LOCATION
| Application | See Figure | |
|---|---|---|
| Beetle | ||

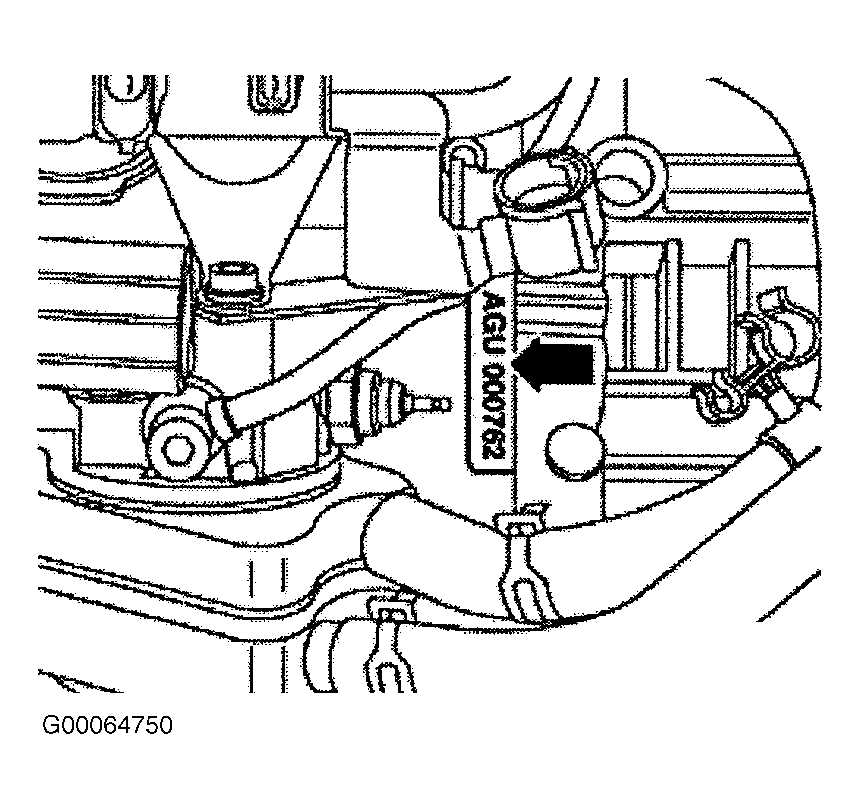

| 1.8L Turbo (APH & AWV) | Fig 1 | |
| 1.8L Turbo (AWP) | Fig 2 | |
| 1.9L Turbo Diesel (ALH) | Fig 3 | |
| 2.0L (AEG) | Fig 4 | |
| 2.0L (AVH & AZG) | Fig 5 | |
| Cabrio | ||
| 2.0L (ABA) | Fig 6 | |
| EuroVan | ||
| 2.8L (AES) | Fig 7 | |
| 2.8L (AXK) | Fig 8 | |
| Golf | ||
| 1.8L Turbo (AWD) | Fig 1 | |
| 1.9L Turbo Diesel (ALH) | Fig 3 | |
| 2.0L (AEG) | Fig 4 | |
| 2.0L (AVH & AZG) | Fig 5 | |
| GTI | ||
| 1.8L Turbo (AWD) | Fig 1 | |
| 1.8L Turbo (AWW) | Fig 2 | |
| 1.8L Turbo (AWP) | Fig 2 | |
| 2.0L (AEG) | Fig 4 | |
| 2.8L (AFP) | Fig 9 | |
| 2.8L (BDF) | Fig 8 | |
| Jetta | ||
| 1.8L Turbo (AWD) | Fig 1 | |
| 1.8L Turbo (AWW) | Fig 2 | |
| 1.8L Turbo (AWP) | Fig 2 | |
| 1.9L Turbo Diesel (ALH) | Fig 3 | |
| 2.0L (AEG) | Fig 4 | |
| 2.0L (AVH & AZG) | Fig 5 | |
| 2.8L (AFP) | Fig 9 | |
| 2.8L (BDF) | Fig 8 | |
| Passat | ||
| 1.8L Turbo (ATW, AUG & AWM) | Fig 10 | |
| 2.8L (ATQ) | Fig 11 | |
| 4.0L (BDP) | Fig 12 | |
