Torque Converter Allocation: Notes
There are two types, which are allocated according to transmission code letters. See CODE LETTERS, TRANSMISSION ALLOCATION, RATIOS, EQUIPMENT .

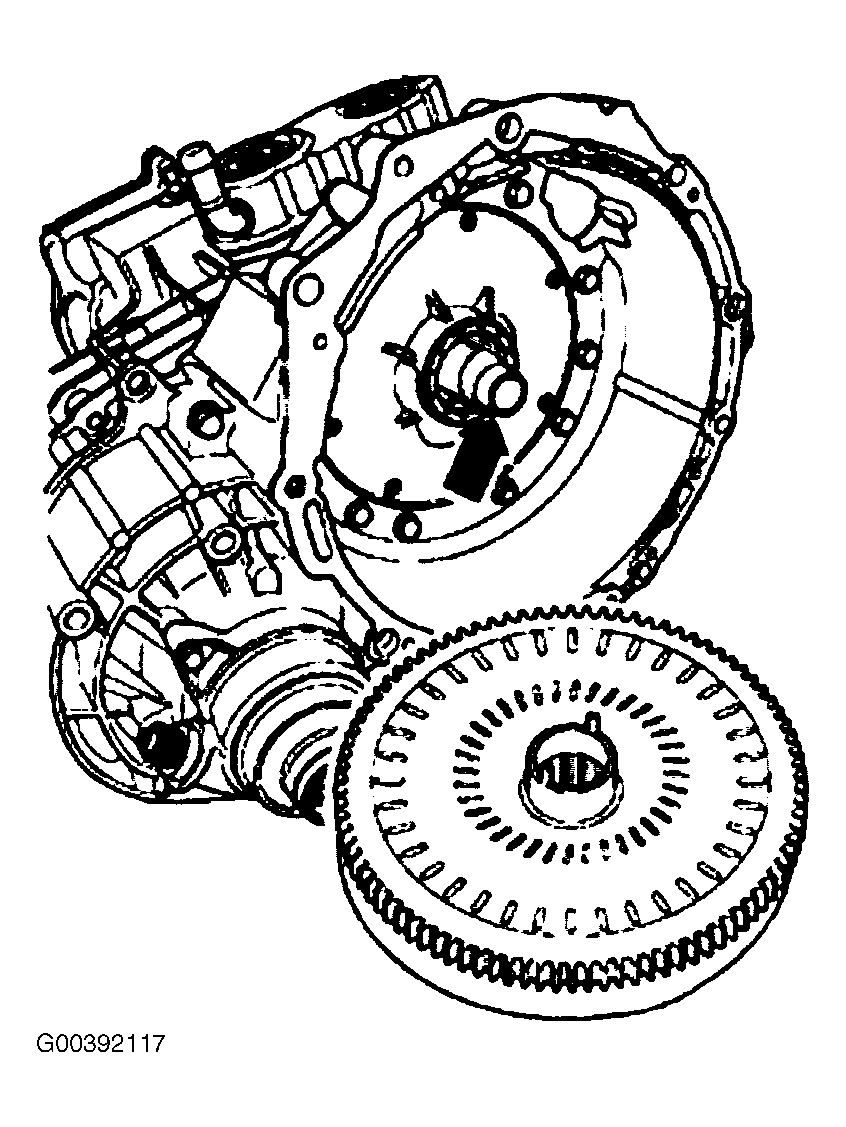

Current torque converter with sleeve bearing in the turbine shaft of the transmission (arrow). See Fig 1 .
New torque converter with integrated needle bearing. A sleeve bearing (arrow) may not be installed in the turbine shaft of the transmission with this type. Remove if necessary.
