Bench Testing: Brushes

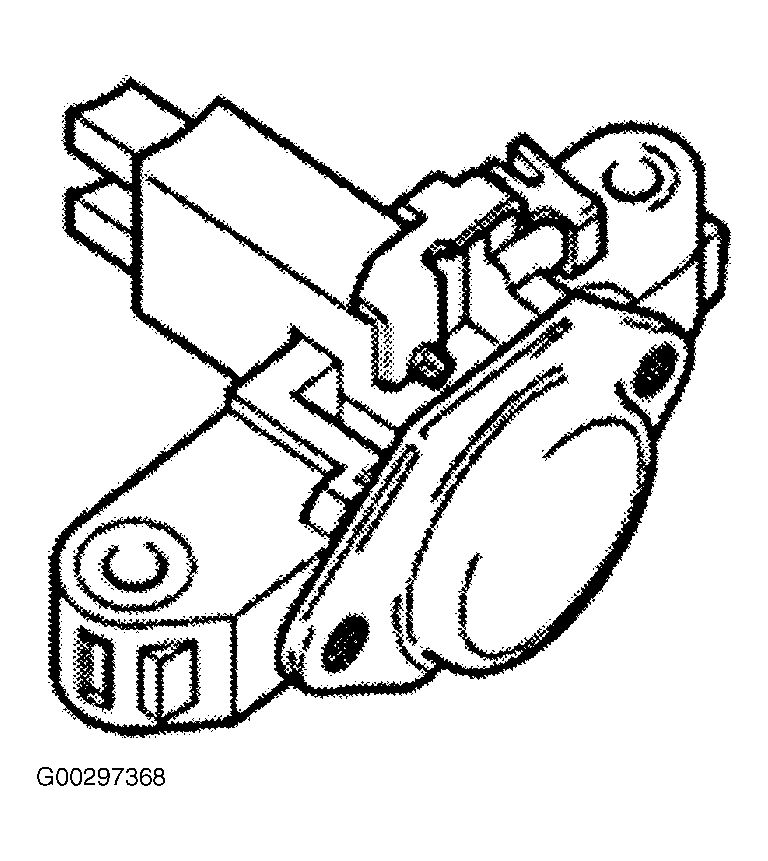

Remove voltage regulator from back of generator. See VOLTAGE REGULATOR under REMOVAL & INSTALLATION. Ensure brushes are longer than 0.20" (5 mm). If necessary, install new brushes. DO NOT allow solder to run into strands of brush leads. See Fig 1 and Fig 2 .
| Application | In. (mm) |
|---|---|
| New | 0.5 (12) |
| Wear Limit | 0.2 (5) |
| Tolerance | 0.04 (1) |
