1990 Volkswagen Cabriolet Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Electronic Control Unit (Ecu)

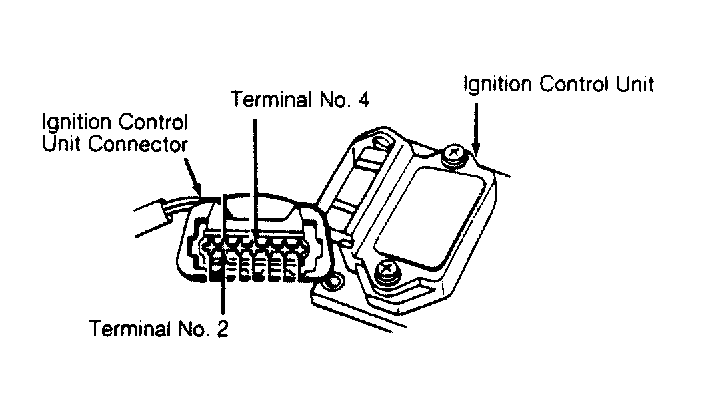

- Perform SPARK TEST check. If secondary spark is present, ignition control unit is okay. If not, turn ignition off. Disconnect ignition control unit wire harness connector. Turn ignition on. Using a voltmeter, measure voltage between terminal No. 2 (-) and terminal No. 4 (+) of connector. See Fig 1 .
- Voltage should be present. If not, ensure continuity exists between terminal No. 2 and ground. Continuity must also exist between terminal No. 4 and ignition coil positive terminal. Repair wiring if necessary. If wiring is okay, replace ignition control unit.
