1989 Volkswagen Fox BaseFACTORY OEM SERVICE PROCEDURE
Main Fuel Pump Volume Check (Fox)

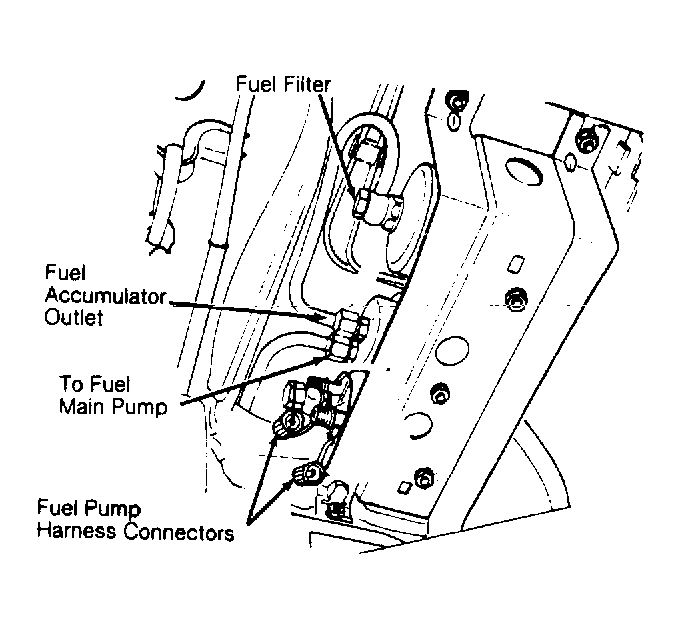

- Disconnect wire harness connector the from fuel pump. See Fig 1 . With voltmeter attached to terminals, activate fuel pump by removing fuel pump relay and attaching jumper wire between terminals No. 30 (Red) and No. 87 (Red/White).
- Record voltage. Remove fuel line from outlet side of accumulator. See Fig 1 . Attach a piece of hose between return line and a graduated container. Activate fuel pump for 15 seconds. Compare volume with specifications given in FOX MAIN FUEL PUMP VOLUME table.
FOX MAIN FUEL PUMP VOLUME
| Fuel Pump Voltage | Fuel Delivery: Oz. (L) |
|---|---|
| 8.0 | 10.1 (.3) |
| 10.0 | 17.0 (.5) |
| 12.5 | 20.3 (.6) |
| 14.0 | 27.2 (.8) |
