1989 Volkswagen Fox BaseFACTORY OEM SERVICE PROCEDURE
Fuel Pressure (VANAGON)

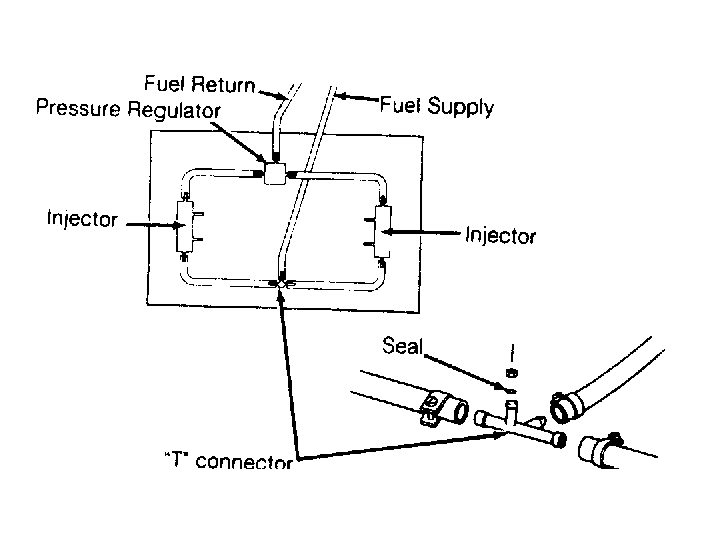

- Install Fuel Pressure Gauge (VW 1318) at fuel supply hose 3-way "T" connector. See Fig 1 . Using a jumper wire, connect terminals No. 30 and 87 on fuel pump relay. Turn ignition on.
- With fuel pump operating, minimum pressure should be 33 psi (2.2 bar). If fuel pressure is incorrect, inspect for restricted fuel lines, defective fuel pump or weak control pressure regulator. If okay, perform FUEL VOLUME CHECK.
REGULATED FUEL PRESSURE
| Application | psi (bar): Engine Off (1) | psi (bar): At Idle | ||||
|---|---|---|---|---|---|---|
| Cabriolet & Fox | 28 (2.6) | 68-78 (4.7-5.4) | ||||
| Golf, Golf GT, Jetta | 29-36 (2.0-2.5) | 75-82 (5.2-5.6) | ||||
| Vanagon | 29-36 (2.0-2.5) | (2) 33 (2.2) | ||||
|
||||||
