1989 Volkswagen Fox BaseFACTORY OEM SERVICE PROCEDURE
Checking & Adjusting: Vanagon
- Warm engine to normal operating temperature. Stop engine and connect a tachometer and timing light to engine. Start engine and raise engine speed to a minimum of 2100 RPM at least 4 times, allowing throttle to close each time (this procedure must be repeated each time timing is checked).

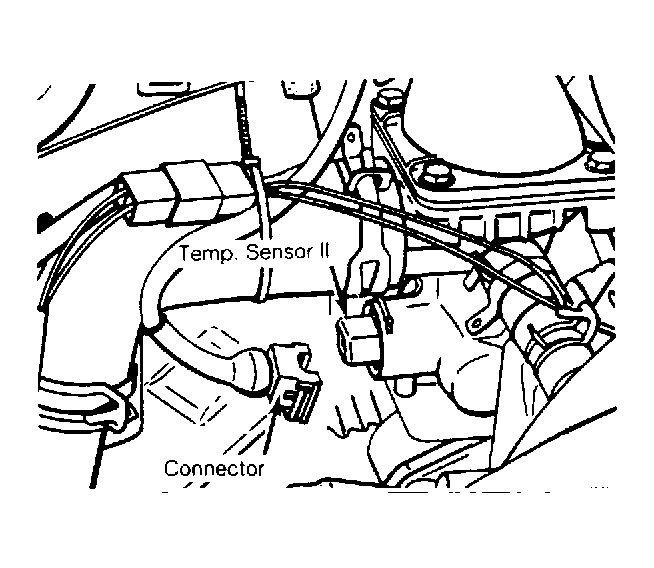

- Disconnect coolant temperature sensor connector before checking ignition timing. See Fig 1 . Increase engine speed to specification when checking ignition timing. Notch on V-belt pulley must align with parting line on crankcase.
- If an adjustment is needed, turn ignition off and loosen distributor hold-down bolt just enough to move distributor by hand. Start and allow engine to idle. Turn distributor until timing mark notch on V-belt pulley is aligned with parting line on crankcase.
IGNITION TIMING (Degrees BTDC @ RPM)
| Application | Checking | Adjusting |
|---|---|---|
| 1.8L | 4-8 @ 2250-2350 | 5-7 @ 2250-2350 |
| 2.1L | 4-8 @ 2250-2350 | 5-7 @ 2250-2350 |
