1987 Volkswagen Vanagon Base, AWDFACTORY OEM SERVICE PROCEDURE
Full Throttle Enrichment Function
- Operate engine until engine oil temperature is at a minimum of 176°F (80°C). Stop engine and connect CO tester and tachometer. Start engine and allow to idle for 2 minutes.

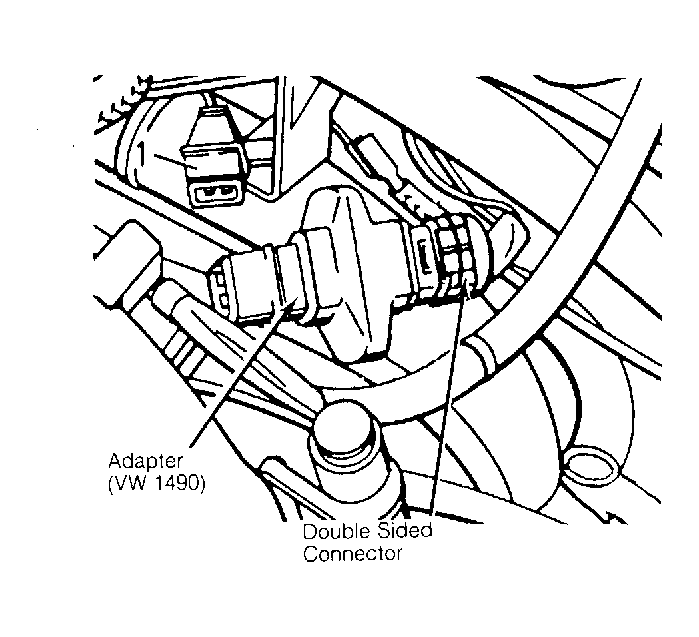

- Remove connector from double sided connector at throttle valve switch. See Figure . Slowly accelerate engine to approximately 4500 RPM. Note and record CO level reading.
- Bridge connections of double sided connector using Adapter (VW 1490 ). Note CO reading. Reading should increase at least 1% over recorded CO reading.
- If reading did not increase, check for defective wiring, engine temperature sending unit or control unit.
