System Check

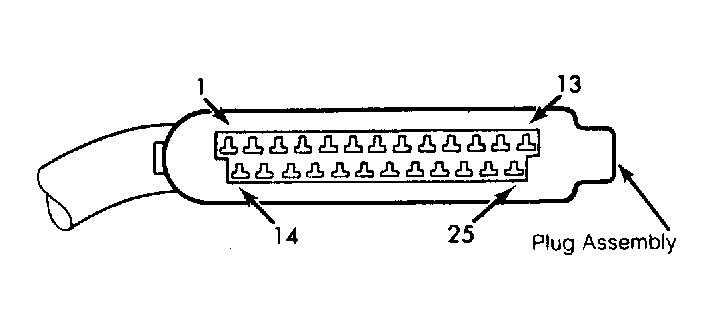

Electrical system functions may be checked at multi-pin connector of ECU. Turn ignition off. Disconnect connector from ECU. Using either ohmmeter or voltmeter, check system between terminals as noted. See Fig 1 . See VANAGON AFC DIGIFANT SYSTEM VOLTAGE CHECKS table and VANAGON AFC DIGIFANT SYSTEM RESISTANCE CHECKS table.
