1987 Volkswagen Quantum Base, StandardFACTORY OEM SERVICE PROCEDURE
Idle Speed Stabilizer Valve
- Connect Tester (VW 1367 ) using Cable Adapter (US 1112 ). Connect ohmmeter between terminal No. 1 of test connector and terminal No. 15 of main ECU connector. With stabilizer valve disconnected there should be continuity between these terminals.
- Connect ohmmeter to terminal No. 2 of the test connection and terminal No. 3 of the central connector. With stabilizer valve disconnected there should be continuity between these terminals. Check and repair any open circuits using wiring diagrams for reference.

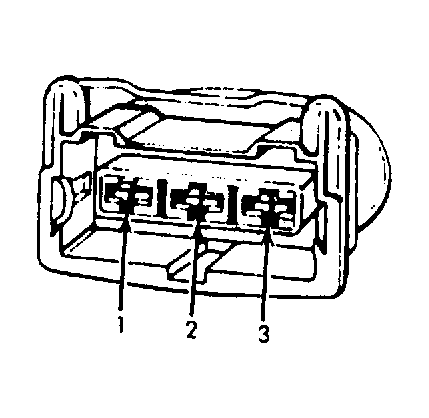

- With stabilizer valve disconnected, connect voltmeter between terminal No. 2 of the idle stabilizer valve connector and ground. With ignition on, battery voltage should be present. See Fig 1.
- With ignition off, check for continuity between terminal No. 3 of the of the idle stabilizer valve connector and terminal No. 3 of the main ECU connector. Check for continuity between stabilizer connector terminal No. 1 and ECU connector No. 4.
- Correct any open circuits and reconnect idle stabilizer valve connector. Connect ohmmeter between terminals No. 3 and 4 of the main ECU connector. Resistance specification is 24-30 ohms. Replace idle stabilizer valve if not within specification.
