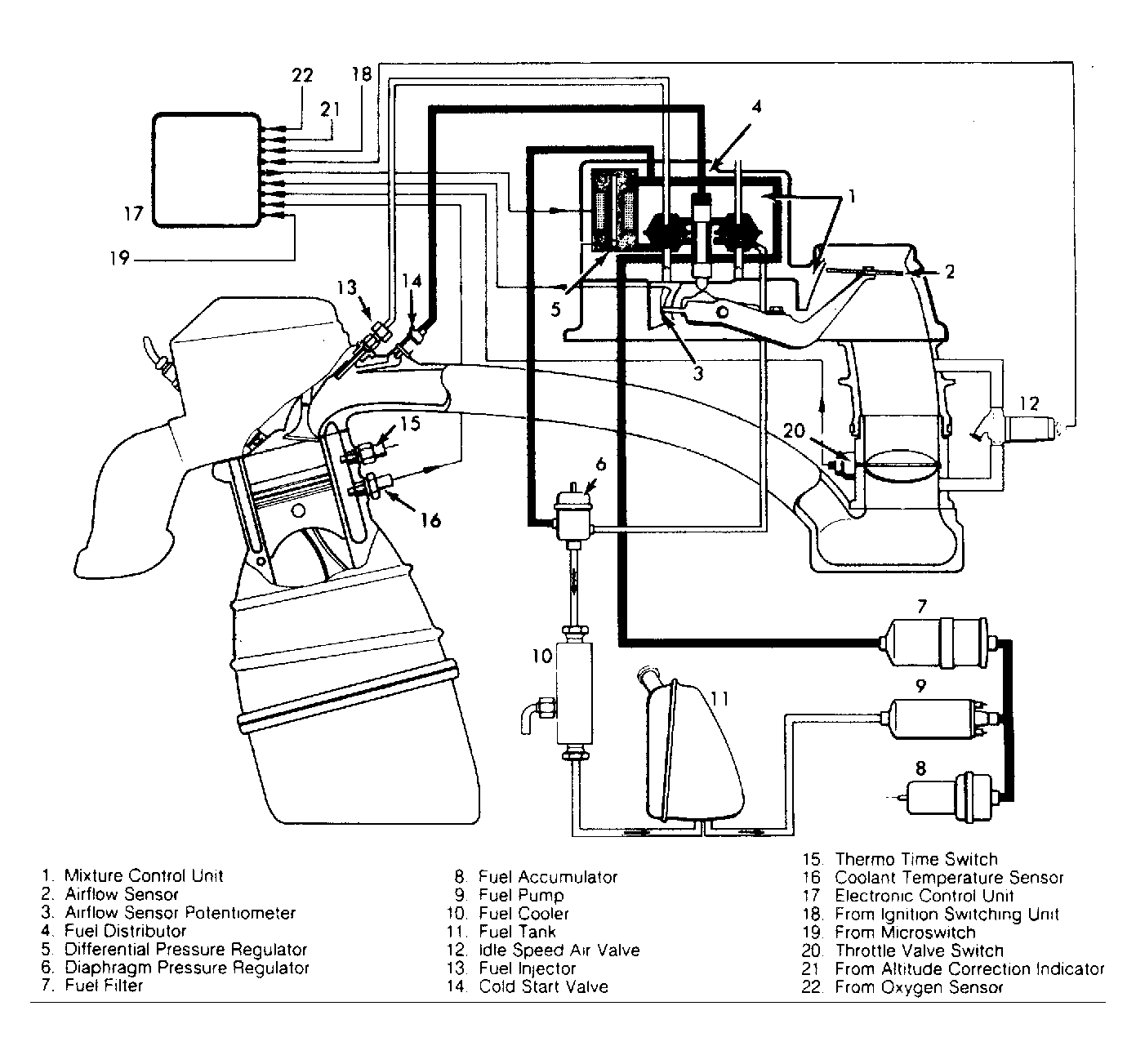

BOSCH Cis-E System: Description
Bosch CIS-E exhaust emission system uses CIS (Continuous Injection System) for fuel delivery and electronic controls for mixture adjustment.
Mechanical portion of CIS-E system consists of Mixture Control Unit (MCU), diaphragm pressure regulator, auxiliary air regulator, cold start valve, fuel injectors, fuel pump and filter. The MCU is comprised of the airflow sensor and fuel distributor.
Electronic controls consist of airflow sensor position indicator (potentiometer), differential pressure regulator, thermo time switch, coolant temperature sensor, Electronic Control Unit (ECU), Transistor Controlled Ignition (TCI), knock sensor, knock sensor control unit, throttle valve microswitch, altitude (barometric) sensor, lambda control and oxygen sensor.
If partial system failure occurs, the ECU will switch to a back-up or "limp-home" mode to allow vehicle operation until system can be repaired.
