1983 Volkswagen Rabbit Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Idle Stabilizer Check
NOTE:
On models equipped with an impedance transformer, testing procedures are the same as with an idle stabilizer.

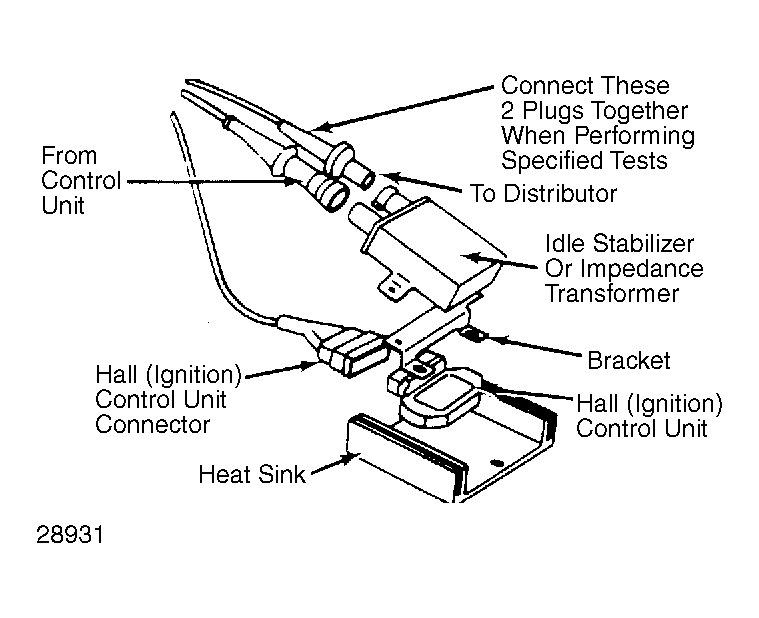

- If engine will not start, check idle stabilizer first. Remove both connectors from idle stabilizer, and connect them together. See Fig 1. This by-passes the idle stabilizer, connecting the Hall control unit directly to the distributor's Hall generator.
- If engine now starts, check contacts and sleeves in idle stabilizer connectors for correct location or for damage. If OK, install new idle stabilizer. If engine would not start with idle stabilizer by-passed, proceed to Distributor Voltage Supply Check.
