1981 Volkswagen Rabbit Base, 2D Convertible, Automatic TransFACTORY OEM SERVICE PROCEDURE
Idle Stabilizer Check
NOTE:
On models equipped with the impedance transformer, testing procedures are performed in same way as with idle stabilizer.

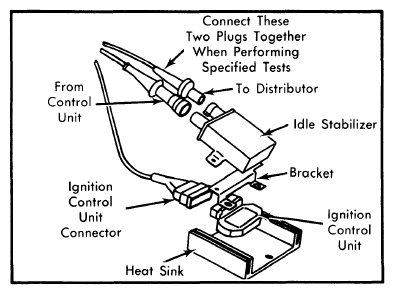

- If engine will not start, check idle stabilizer first. See Fig 1. Remove both connectors from idle stabilizer and connect them together. This by-passes the idle stabilizer connecting the ignition control unit directly to the distributor. If engine now starts, idle stabilizer is defective.
- In other cases where engine starts but idle stabilizer is suspected, by-pass the stabilizer by removing the 2 connectors and connecting them together. Turn off all electrical accessories and set idle speed and timing.
- Then, reconnect the idle stabilizer. Ignition timing at idle may fluctuate, but should be about 3° ATDC (±3°). Turn all power accessories in step 2 back on. Ignition timing should be advanced to keep engine speed to specifications. If not, replace idle stabilizer.
