Lucas "ACR" model alternators have an integral voltage regulator mounted in the slip ring end bracket. The stator consists of star-connected, three phase windings on a ring end cover and drive end bracket. The rotor is either an eight or twelve pole type with the field windings connected to two face-type slip rings, and is supported in drive-end bracket by a ball bearing and in the end cover by needle roller bearings. One positive and one negative carbon brush ride against concentric brass slip rings. The heatsink-rectifier, terminal block assembly incorporate six silicon diodes, forming a full wave rectifier bridge circuit, and three diodes which supply current to the rotor windings.

NOTE: Up to a ten milliamp battery drain is normal, even with the ignition in the "OFF" position.

APPLICATION

Model		Type No.
Austin Marina		18 ACR
Jaguar
	XJ-6 Without Air Cond.	18 ACR
	XJ-6 With Air Cond.	20 ACR
	XJ-12	20 ACR
MG		16 ACR
Triumph
	Spitfire 1500	16 ACR
	TR-6	18 ACR
	TR-7	20 ACR

SPECIFICATIONS

Nominal Output
Alternator	Amps @ RPM	(1) Voltage
16 ACR	34 @ 6000	12
18 ACR	43 @ 6000	12
20 ACR	66 @ 6000	12

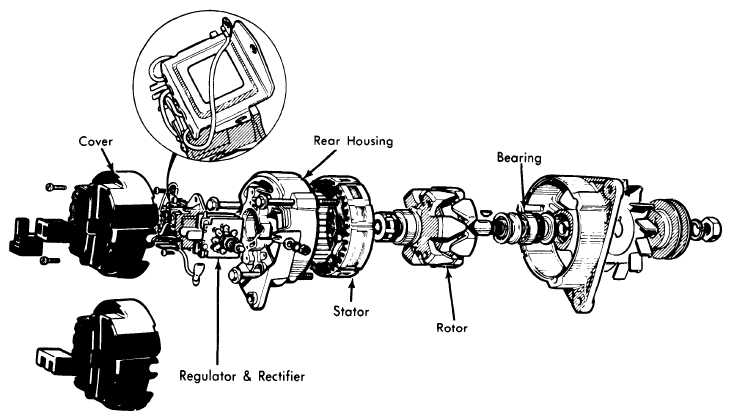

Fig 1: Disassembled View of Lucas Integral Regulator Alternator Assembly
