2021 Toyota 4Runner TRD ProFACTORY OEM SERVICE PROCEDURE

Removal [08/2015 - ]: Procedure

REMOVE CYLINDER HEAD SUB-ASSEMBLY (for Bank 1)
1. Remove the cylinder head (Refer to REMOVAL [08/2015 - ] ).

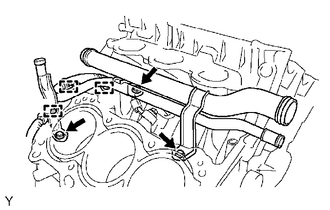

REMOVE NO. 1 WATER OUTLET PIPE

Detach the 3 wire harness clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 nuts, bolt and water outlet pipe.

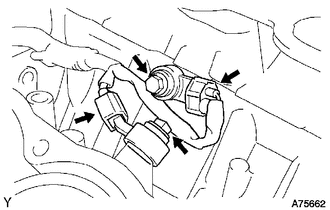

REMOVE KNOCK SENSOR

Disconnect the 2 sensor connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 bolts and 2 sensors.
