2021 Toyota 4Runner TRD ProFACTORY OEM SERVICE PROCEDURE

Removal [08/2015 - ]: Procedure

REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
1. Remove the lower instrument panel (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - 08/2022] , or refer to REMOVAL [08/2022 - ] ).

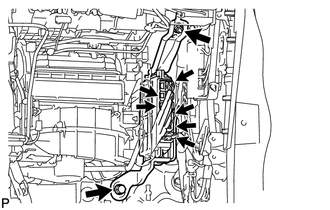

REMOVE ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 6 connectors.
2. Remove the bolt, nut and ECM.

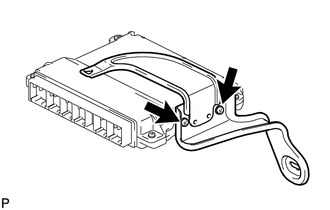

REMOVE ECM BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and ECM bracket.

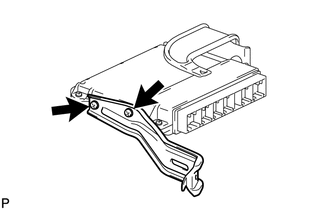

REMOVE NO. 2 ECM BRACKET

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and No. 2 ECM bracket.
