Inspection [06/2016 - ]: Procedure
- INSPECT HEATED OXYGEN SENSORΒ
- Measure the resistance according to the value(s) the table below.
Standard Resistance

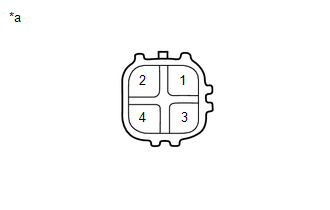

Tester Connection Condition Specified Condition 1 - 2 20Β°C (68 Β°F) 5.0 to 6.4 Ξ© 1 - 4 Always 10 kΞ© or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Heated Oxygen Sensor)If the result is not as specified, replace the heated oxygen sensor.
- Measure the resistance according to the value(s) the table below.
