2013 Toyota Sienna LFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 24
  2. REMOVE NO. 1 ENGINE UNDER COVER  . Refer to REMOVAL - Step 4
  3. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 3
  4. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL

  5. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 10
  6. REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL  See step  6
  7. REMOVE AIR CLEANER AND HOSE  See step  7
  8. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

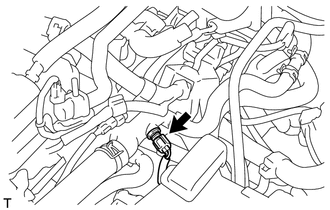

      Fig 1: Locating Engine Coolant Temperature Sensor & Connector
      GTY295912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 19 mm deep socket wrench, remove the engine coolant temperature sensor.

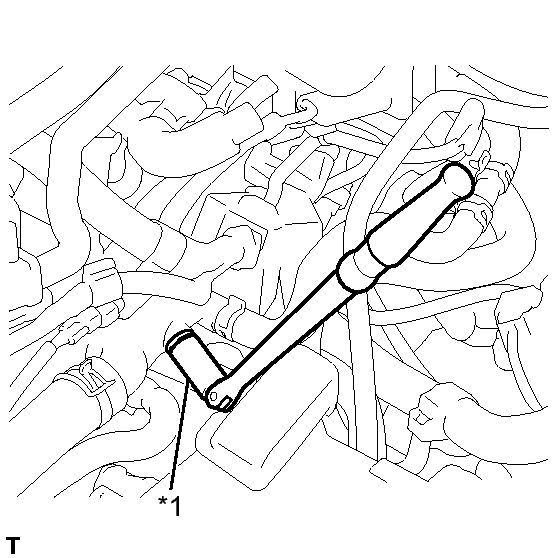

      Fig 2: Removing Engine Coolant Temperature Sensor Using Deep Socket Wrench
      GTY305162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 19 mm Deep Socket Wrench
    3. Remove the gasket from the sensor.
