2013 Toyota Sienna LFACTORY OEM SERVICE PROCEDURE

Accelerator Pedal: Removal: Removal

REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
1. Disconnect the accelerator pedal sensor assembly connector.

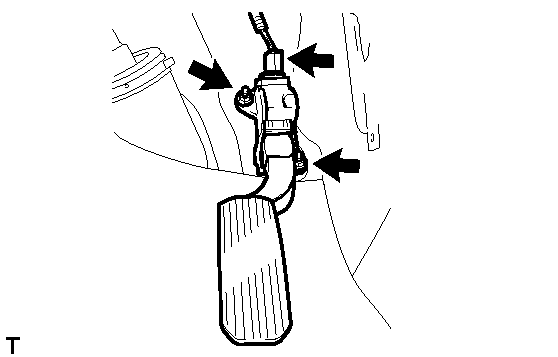

  Fig 1: Locating Accelerator Pedal Sensor Assembly, Connector & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and the accelerator pedal sensor assembly.
  NOTE:
  - Avoid physical shocks to the accelerator pedal sensor assembly.
  - Do not disassemble the accelerator pedal sensor assembly.
