Engine Coolant Temperature Sensor: Inspection: Inspection

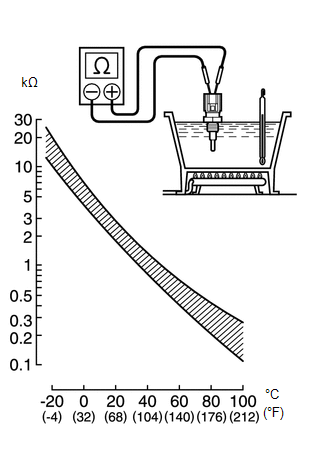

- INSPECT ENGINE COOLANT TEMPERATURE SENSOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Condition Specified Condition Approximately 20°C (68°F) 2.32 to 2.59 kΩ Approximately 80°C (176°F) 0.310 to 0.326 kΩ NOTE:When checking the engine coolant temperature sensor in water, keep the terminals dry. After the check, dry the sensor.
If the resistance is not as specified, replace the engine coolant temperature sensor.
- Measure the resistance according to the value(s) in the table below.
