Fuel Pump: Disassembly: Disassembly
- REMOVE FUEL SENDER GAUGE ASSEMBLY See step 2
- REMOVE FUEL PUMP

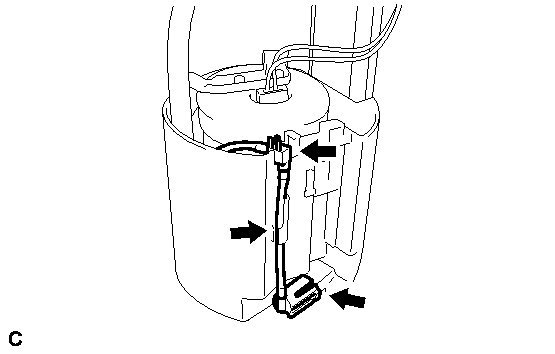

- Disconnect the connector of the fuel pump harness.

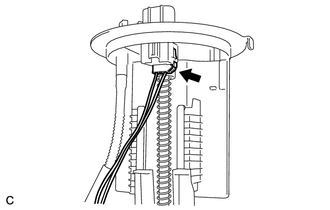

- Disconnect the fuel pump filter hose.

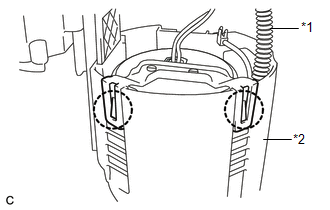

- Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws, and remove the fuel filter and fuel pump from the fuel sub-tank.TEXT IN ILLUSTRATION
*1 Fuel Tube *2 Fuel Sub-tank NOTE:Do not do anything which may separate the fuel tube from either the fuel suction plate or fuel filter assembly, such as applying excessive force to the tube. Refer to PRECAUTION .

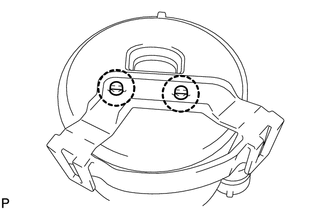

- Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the No. 1 fuel suction support.

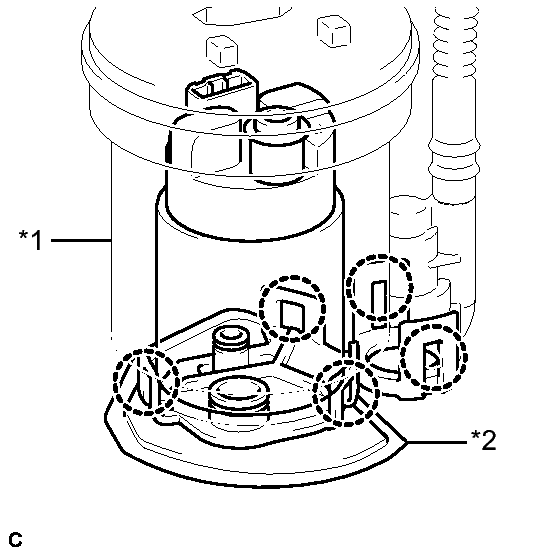

- Using a screwdriver with its tip wrapped in protective tape, disengage the 5 claws, and remove the fuel pump from the fuel filter.TEXT IN ILLUSTRATION
*1 Fuel Filter *2 Suction Filter NOTE:- Do not damage the fuel filter.
- Do not remove the suction filter.
- Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.

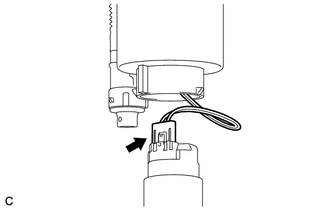

- Disconnect the fuel pump harness connector.

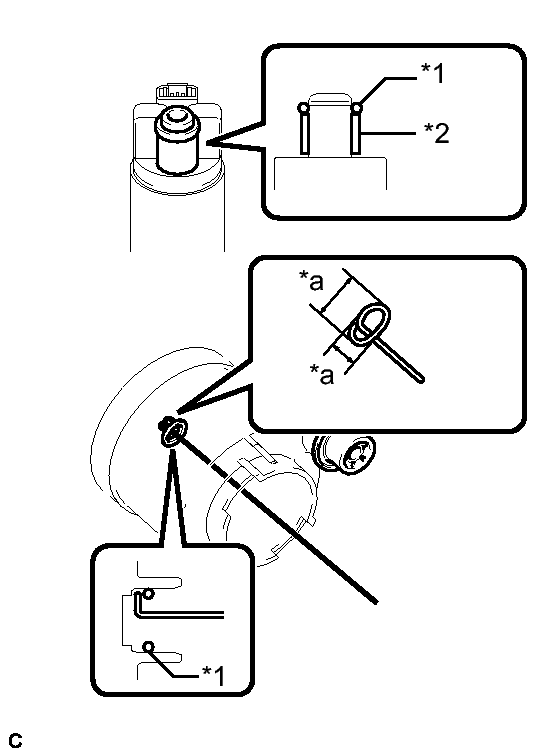

- Remove the O-ring and spacer from the fuel pump.TEXT IN ILLUSTRATION
*1 O-ring *2 Spacer *a 5.0 mm (0.197 in.) NOTE:Be careful not to damage the sealing surface.
HINT:
If the O-ring still remains in the fuel filter, remove it using a wire tip (1 mm diameter) that is formed as shown in the illustration.
