2013 Toyota Prius ThreeFACTORY OEM SERVICE PROCEDURE

Throttle Body: Removal: Removal

  1. REMOVE NO. 1 ENGINE UNDER COVER
  2. DRAIN ENGINE COOLANT (for Engine)  . Refer to REPLACEMENT - Step 2
  3. REMOVE NO. 2 CYLINDER HEAD COVER  . Refer to REMOVAL - Step 29
  4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
    1. Disconnect the connector.

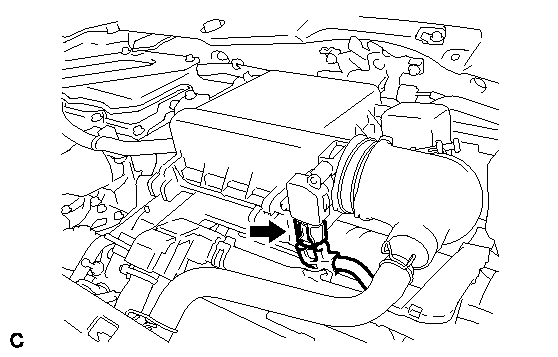

      Fig 1: Identifying Mass Air Flow Meter Connector
      GTY224333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the hose clamp and disconnect the air cleaner hose assembly.

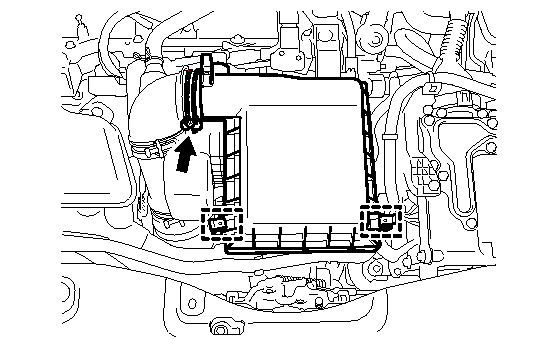

      Fig 2: Hose Clamp & 2 Clamps
      GTY366746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clamps and air cleaner cap subassembly.
  5. REMOVE INLET AIR CLEANER ASSEMBLY
    1. Remove the 2 bolts and inlet air cleaner assembly.

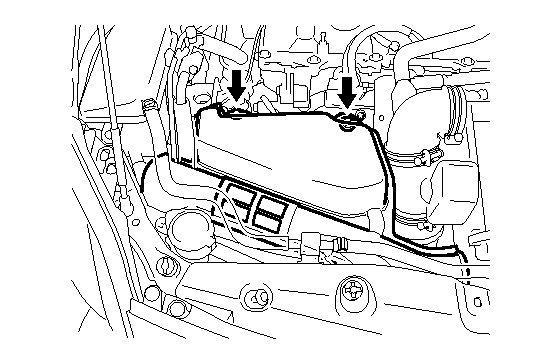

      Fig 3: Identifying Inlet Air Cleaner Assembly
      GTY327354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR CLEANER CASE
    1. Remove the air cleaner filter element sub-assembly.
    2. Separate the hose from the 3 clamps.

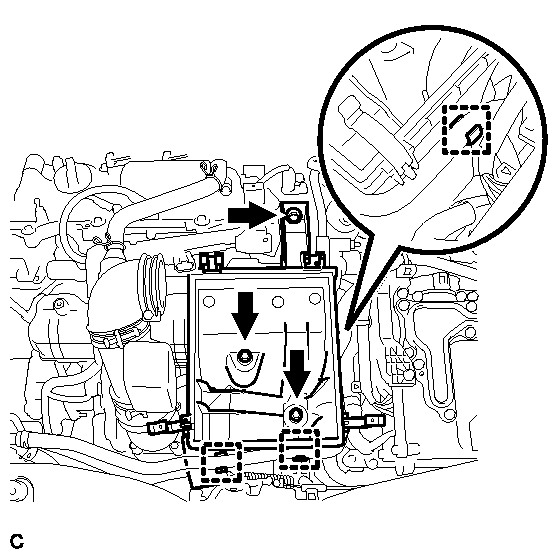

      Fig 4: Identifying Air Cleaner Filter Element, Hose, Clamps, Air Cleaner Case & Bolts
      GTY224213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 bolts and air cleaner case.
  7. REMOVE AIR CLEANER HOSE ASSEMBLY
    1. Disconnect the ventilation hose from the cylinder head cover sub-assembly.

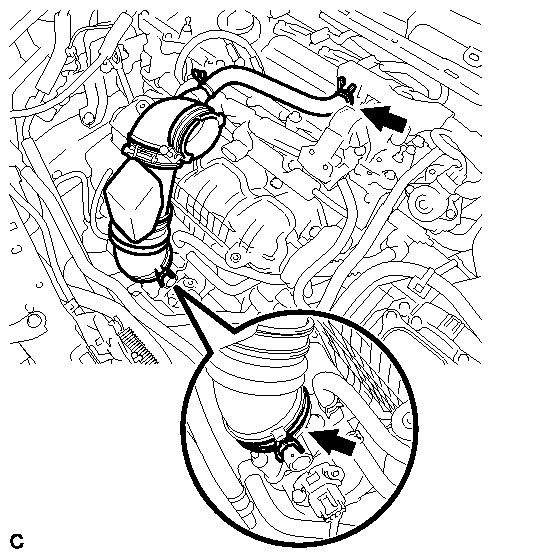

      Fig 5: Identifying Air Cleaner Hose Assembly, Hose Clamp & Ventilation Hose
      GTY223684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the hose clamp and remove the air cleaner hose assembly.
  8. REMOVE THROTTLE BODY ASSEMBLY
    1. Type A:
      1. Disconnect the throttle body connector and the 2 water by-pass hoses.

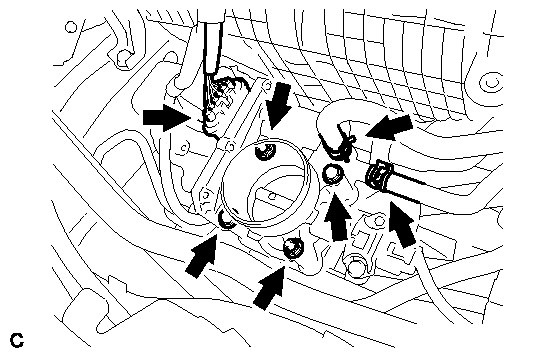

        Fig 6: Identifying Throttle Body Assembly, Connector, Bypass Hoses, Bolts & Nuts
        GTY223851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 2 bolts, 2 nuts and throttle body assembly.
      3. Remove the gasket from the intake manifold.

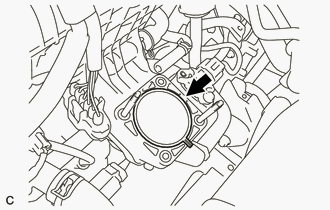

        Fig 7: Identifying Gasket
        GTY329009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:
      1. Disconnect the connector.

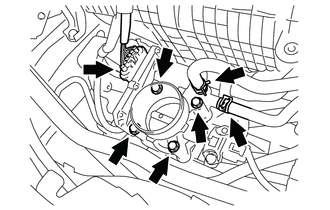

        Fig 8: Identifying Connector, No. 1 Water By-Pass Hose, No. 2 Water By-Pass Hose & Bolts
        GTY384180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the No. 1 water by-pass hose and No. 2 water bypass hose.
      3. Remove the 4 bolts and throttle body assembly.
      4. Remove the gasket from the intake manifold.

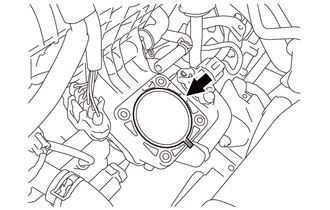

        Fig 9: Identifying Gasket
        GTY379628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
