Integration Relay: Installation: Installation
- INSTALL NO. 1 INTEGRATION RELAY

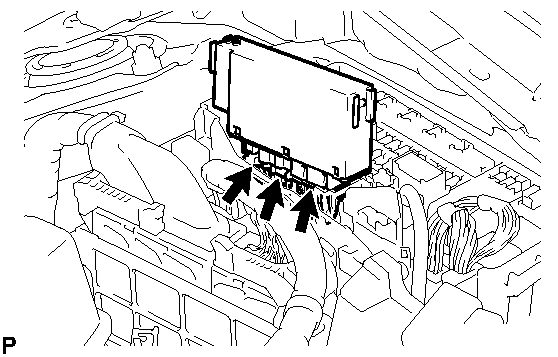

- Connect the 3 connectors.

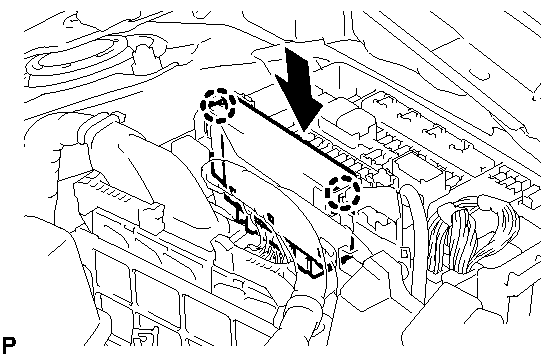

- Engage the 2 claws to install the No. 1 integration relay as shown in the illustration.
- INSTALL NO. 1 RELAY BLOCK COVER

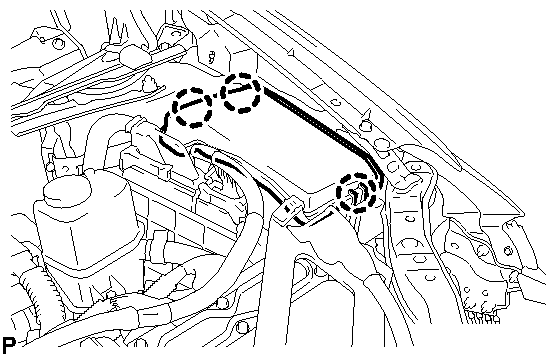

- Engage the 3 claws to install the No. 1 relay block cover.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
