2013 Toyota Prius Plug-inFACTORY OEM SERVICE PROCEDURE

System Diagram

Remote Control Mirror

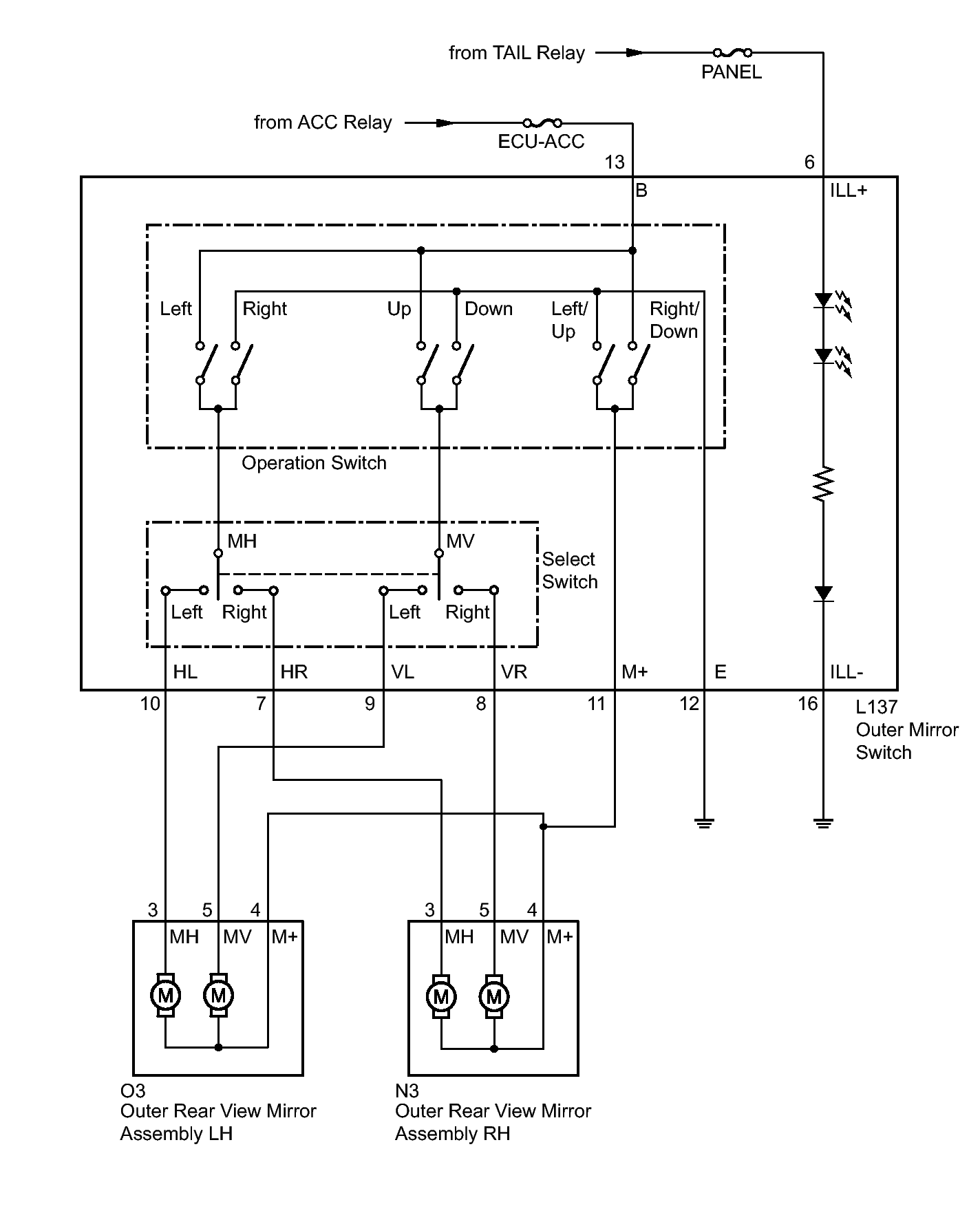

Fig 1: Identifying Remote Control Mirror System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Mirror Heater

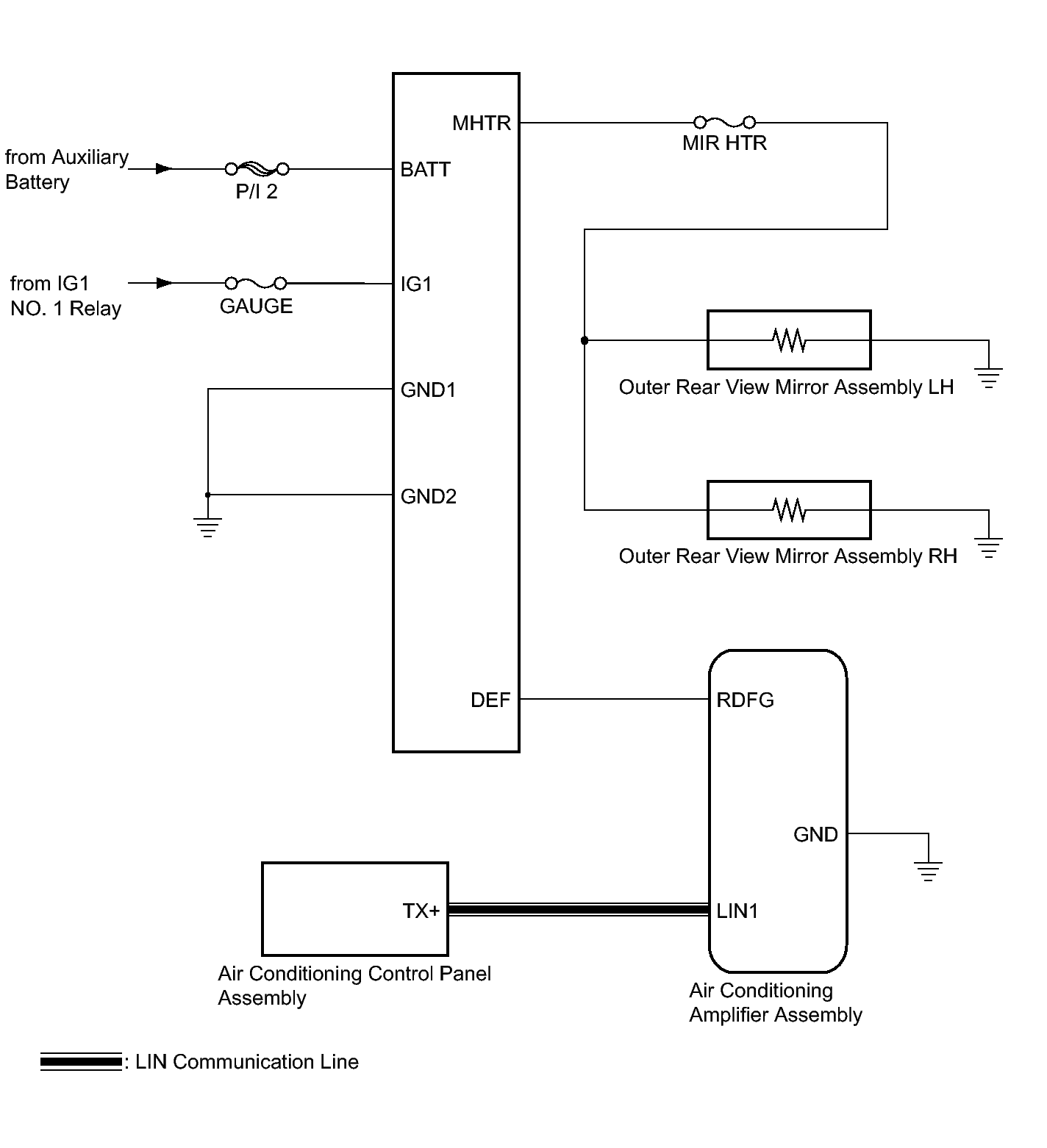

Fig 2: Identifying Mirror Heater System Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Transmitting ECU	Receiving ECU	Signal	Communication Method
Air Conditioning Control Panel Assembly	Air Conditioning Amplifier Assembly	Outer Mirror Heater Switch Signal	LIN
