2013 Toyota Prius FiveFACTORY OEM SERVICE PROCEDURE

Camshaft Oil Control Valve: Removal: Removal

REMOVE NO. 2 CYLINDER HEAD COVER . Refer to REMOVAL - Step 29
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Disconnect the camshaft timing oil control valve assembly connector.

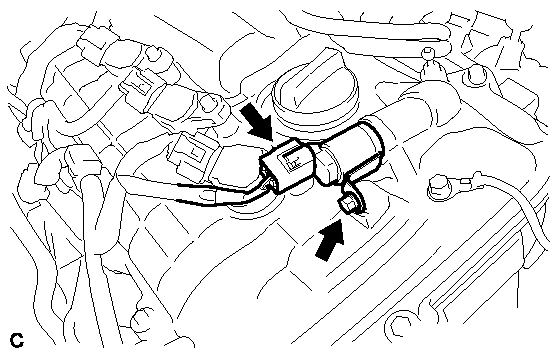

  Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and remove the camshaft timing oil control valve assembly.
3. Remove the O-ring from the camshaft timing oil control valve assembly.

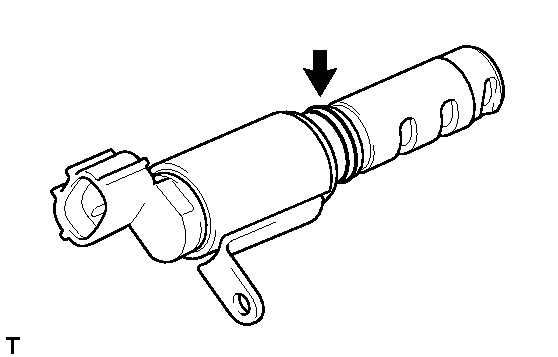

  Fig 2: Locating Camshaft Timing Oil Control Valve O-Ring (For Intake Camshaft Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
