On-Vehicle Inspection

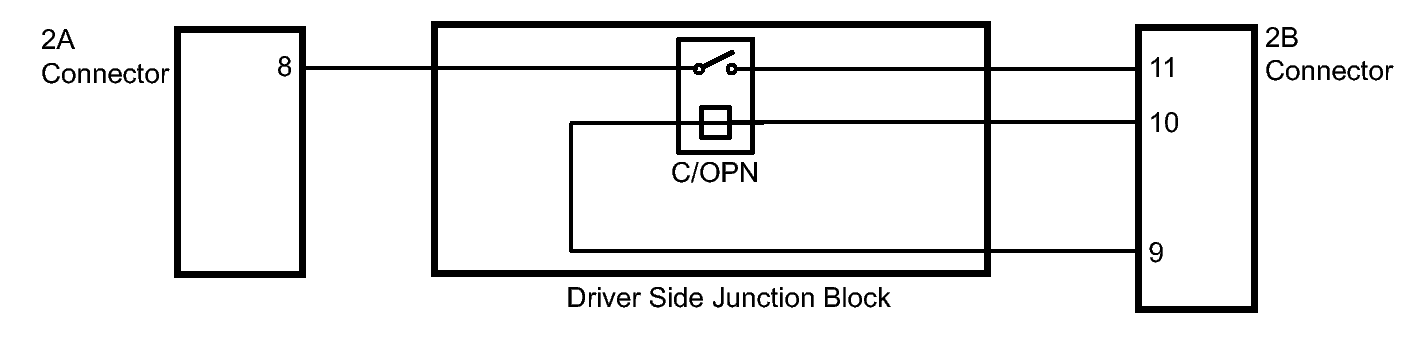

- INSPECT CIRCUIT OPENING RELAYΒ
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

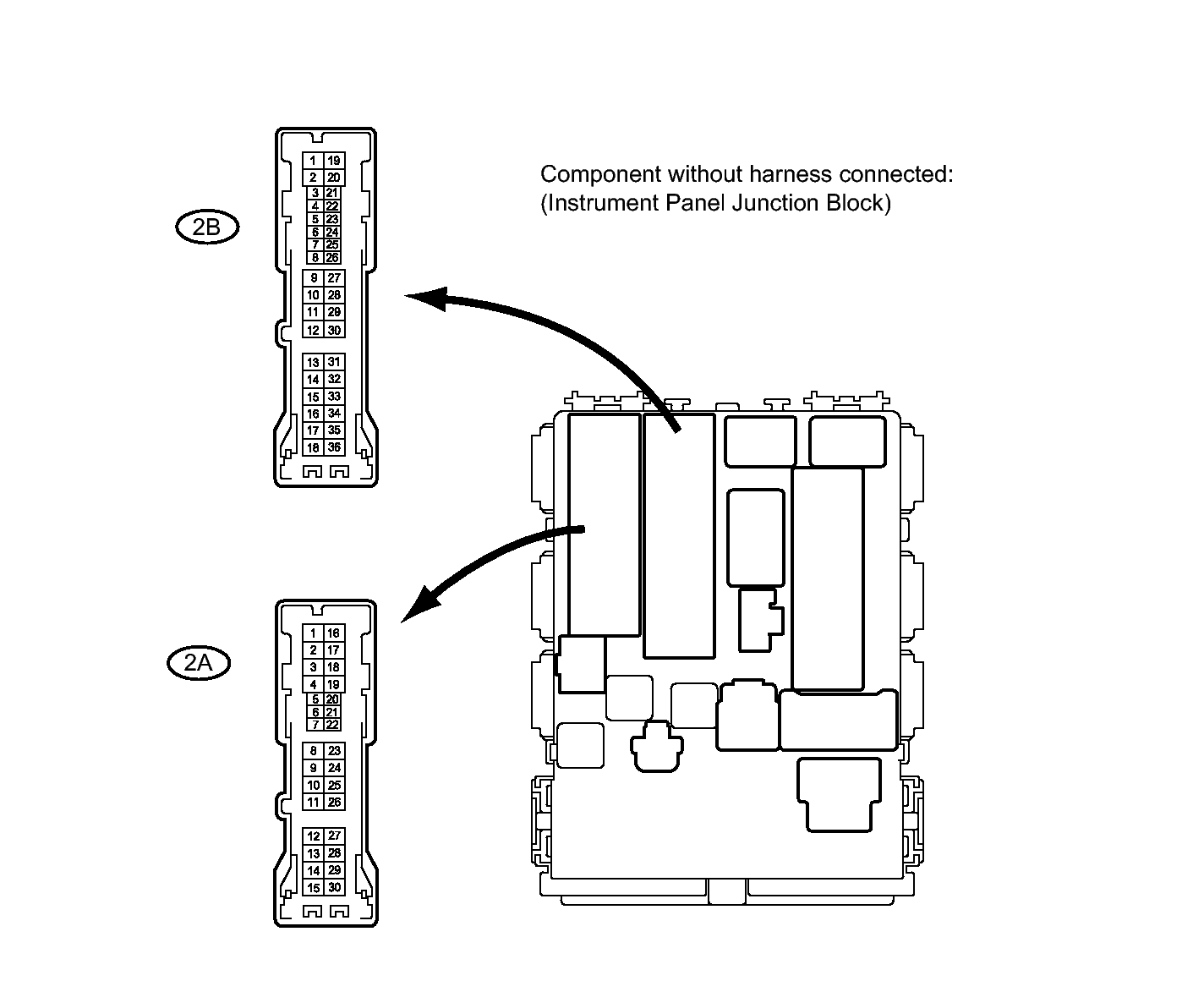

Tester Connection Condition Specified Condition 2A-8 - 2B-11 Battery voltage is not applied between terminals 2B-10 and 2B-9 10 kΞ© or higher 2A-8 - 2B-11 Battery voltage is applied between terminals 2B-10 and 2B-9 Below 1 Ξ© If the resistance is not as specified, replace the instrument panel junction block.
- Measure the resistance according to the value(s) in the table below.
