2013 Toyota Matrix Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Integration Relay: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE INTEGRATION NO. 1 RELAY
1. Remove the No. 1 relay block cover.
2. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and then pull the integration relay out of the No. 1 relay block.

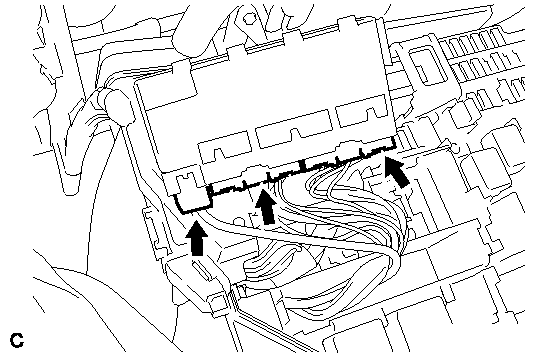

  Fig 1: Removing Integration Relay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 3 connectors and remove the integration relay.

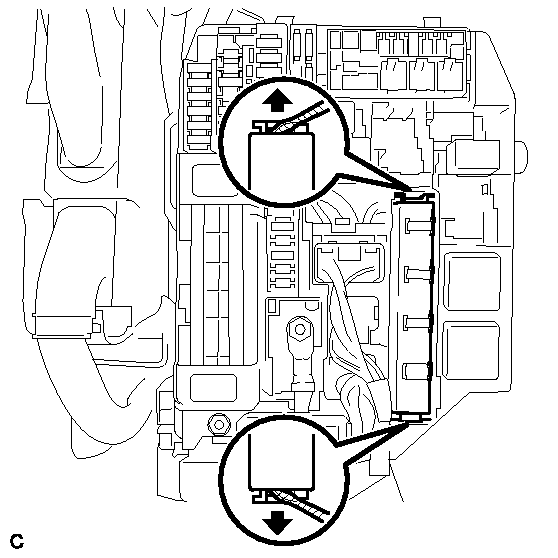

  Fig 2: Locating Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
